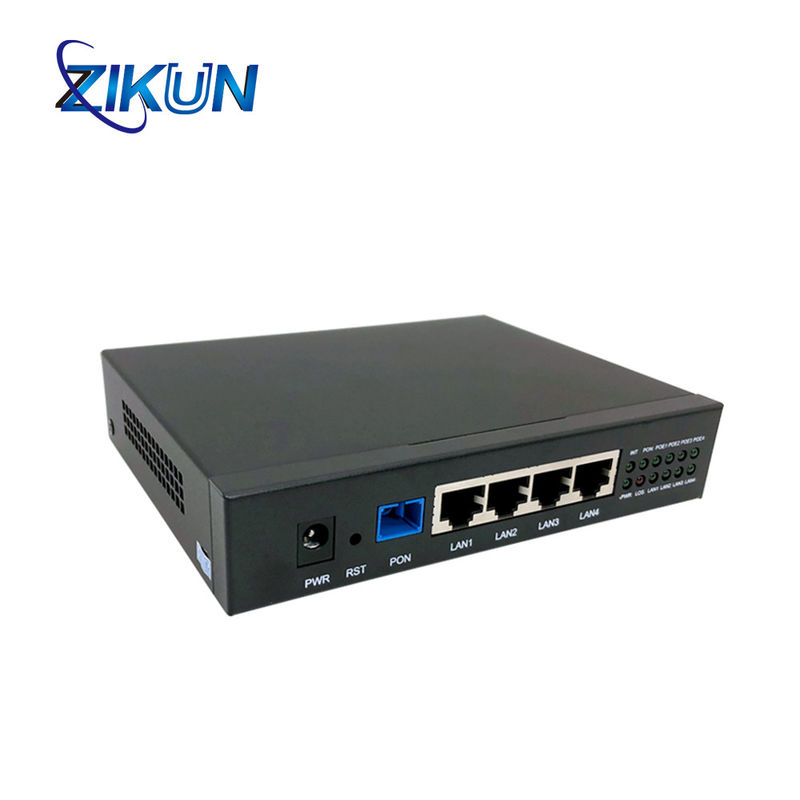

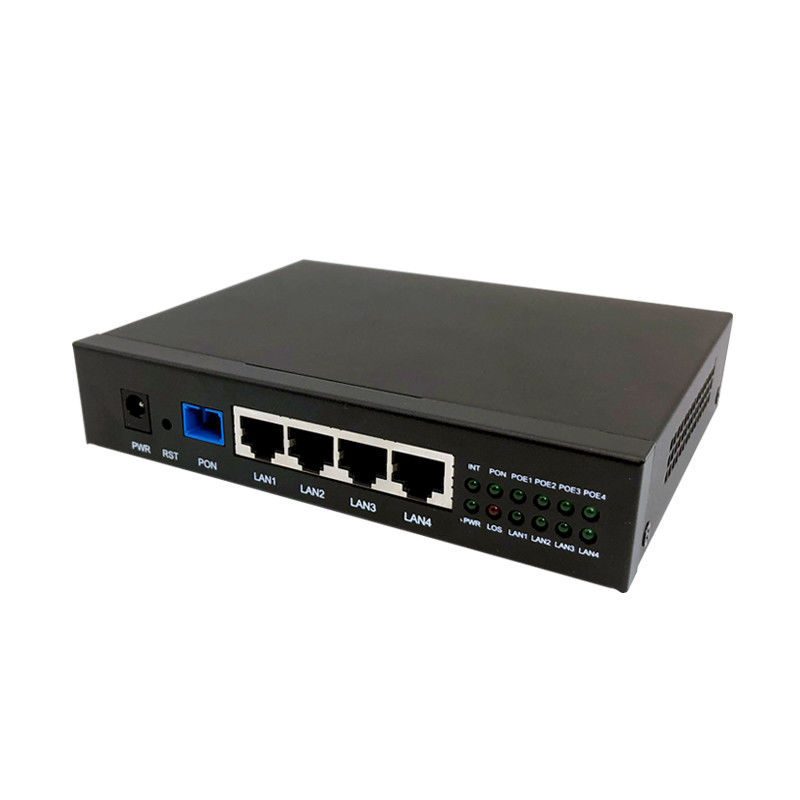

Full Gigabit GPON ONU 4 Ports IEEE802.3af PoE PoE+ ZIKUN ONT SC / UPC
ZC-500G is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 4 GE ports with PoE/PoE+ to provide high-quality voice, data, and HD video services.
| GPONinterface(NNI):1 x GPON interface | ||
| Optical port | ITU-T G.984 GPON standards,Flexible mapping between GEM Port and TCONT | |
| Optical connector | SC/UPC | |
| Receiving Sensitivity | -28dBm | |
| Overload optical power | -8 dBm | |
| Transmitting Optical Power | 0.5~5dBm | |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream | |
| Wavelength | Receiving(DOWN):1490nm；Transmitting(UP):1310nm | |
| User Network Interface(UNI):4 GE(PoE/PoE+) | ||
|
Ethernet Port
|
• Ethernet port-based VLAN tags and tag removal | |
| • VLAN transparent transmission | ||
| • MAC address learning | ||
| • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s | ||
| • PoE and PoE+, complying with IEEE 802.3afandIEEE 802.3at | ||
| Product Function | ||
| Layer 2 Features | • MAC learning (SVL)/aging | |
| • VLAN tagging for untagged packets | ||
| • Support VLAN 1-4094 | ||
| • VLAN transparent/translation | ||
| Multicast | • IGMP multicast, effective use of broadband | |
| • multicast VLAN | ||
| Qos | • IEEE 802.1p, CoS | |
| • WR,SP and FIFO queue scheduling algorithm | ||
| • Port rate limit | ||
| • Backpressure flow control(half-duplex) | ||
| • IEEE 802.3x flow control(full-duplex) | ||
| Manage | • Web/Telnet/OMCI | |
| Physical Performance | ||
| Dimensions (H x W x D) | 2.58CM*15.3CM*13CM | |
| Weight | About 0.7Kg | |
| Working temperature | -5°C ~ 60°C | |
| Working humidity | 5% RH to 95% RH (non-condensing) | |
| Power adapter input | 100–240 V AC, 50 / 60 Hz | |
| System power supply | 56V DC | |
| Static power consumption |
7W |
|
| Maximum power consumption |
9 W (POE port without PD); 77 W (POE port with PD having the maximum powerconsumption) |
|
