1FE WiFi 1GE XPON ONU CATV With 300Mbps WDM One Fiber Terminal Box

Name: 1FE WiFi 1GE XPON ONU CATV With 300Mbps WDM One Fiber Terminal Box
Brand: ZIKUN
SKU: ZC-512T
Rating: 4.6 (123 reviews)

Get Price Contact Now

1GE 1FE WiFi XPON ONU CATV With 300Mbps WDM One Fiber Terminal Box

Product Overview

ZC-512T is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
ZC-512T is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
ZC-512T adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
ZC-512T is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
ZC-512T is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
ZC-512T is designed by Realtek chipset 9602C.

Product model	Product specification
ZC-512T	1 G/EPON+1GE+1FE+WiFi +CATV

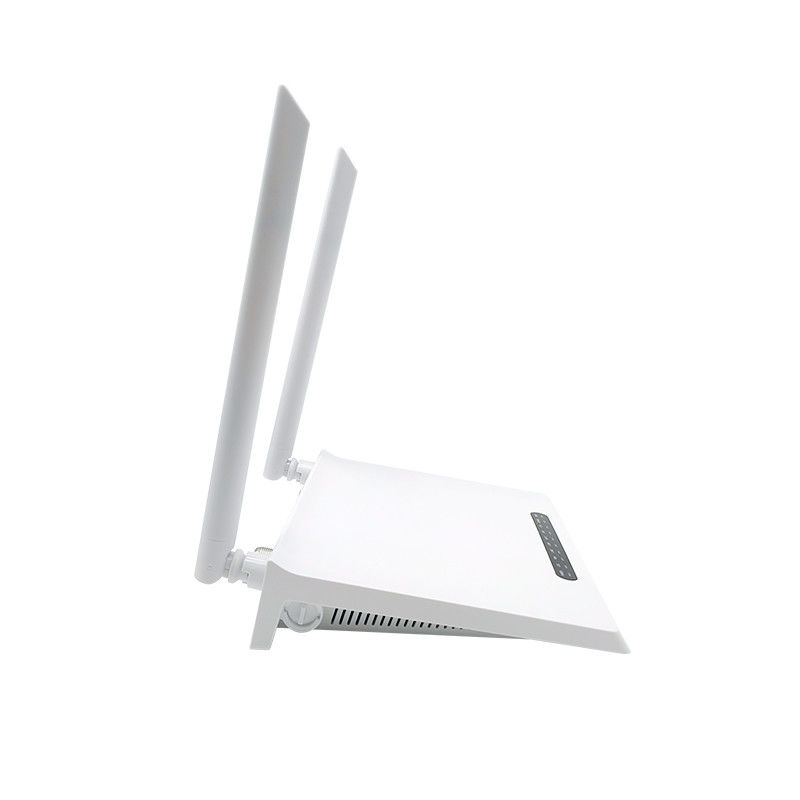

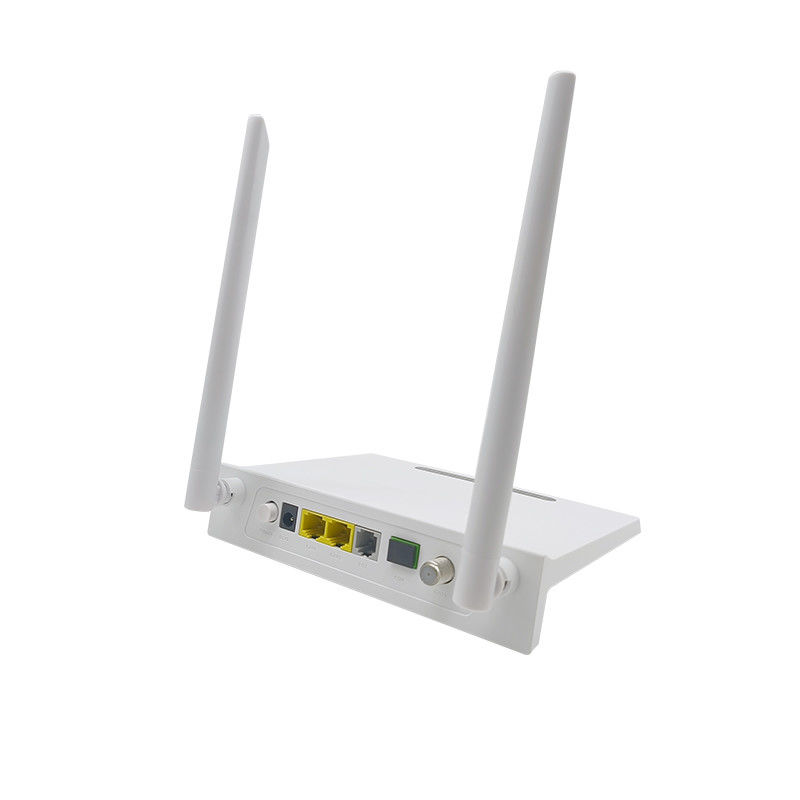

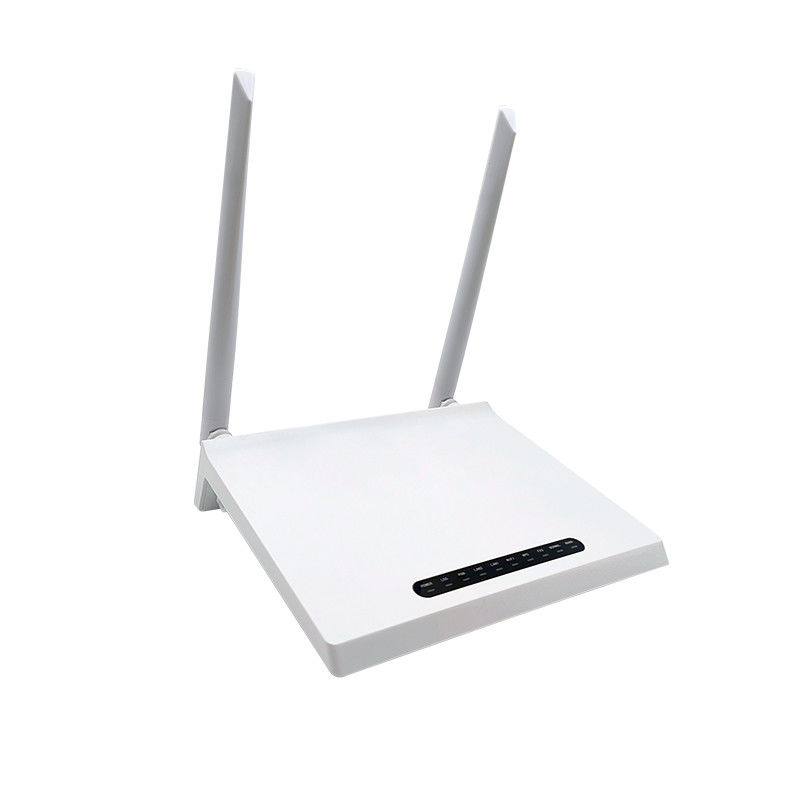

1FE WiFi 1GE XPON ONU CATV With 300Mbps WDM One Fiber Terminal Box 0

Feature

Specifications

Item	Function
PON mode	Dual Mode , Can access EPON/GPON mainstream OLTs
Software mode	Bridging and Routing Mode.
Layer2	802.1D&802.1ad bridge,802.1p Cos,802.1Q VLAN.
Layer3	IPv4/IPv6 , DHCP Client/Server , PPPoE ,NAT , DMZ ,DDNS.
Multicast	IGMPv1/v2/v3 , IGMP snooping.
Security	Flow & Storm control, Loop Detection.
CATV	Support CATV management.
WiFi	IEEE802.11b/g/n (TX power:17dBm/16dBm/15dBm),Up to 300Mbps Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES).
Firewall	Filtering Based on ACL/MAC/URL.
O&M	WEB/TELNET/OAM/OMCI, Support private OAM/OMCI protocol and Unified network management of ZIKUN OLT.

Item	1GE+1FE+1VoIP+WiFi+CATV ONU
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm, Saturability: -8dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
Wavelength	Tx1310nm,Rx 1490nm and 1550nm
Optical interface	SC/APC connector(signal fiber with WDM)
LAN interface	1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WiFi interface	Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM
CATV interface	RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level and AGC range: 83dbuv@0~-10dBm / 81dbuv@-1~-11dBm / 79dbuv@-2~-12dBm / 77dbuv@-3~-13dBm / 75dbuv@-4~-14dBm / 73dbuv@-5~-15dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
