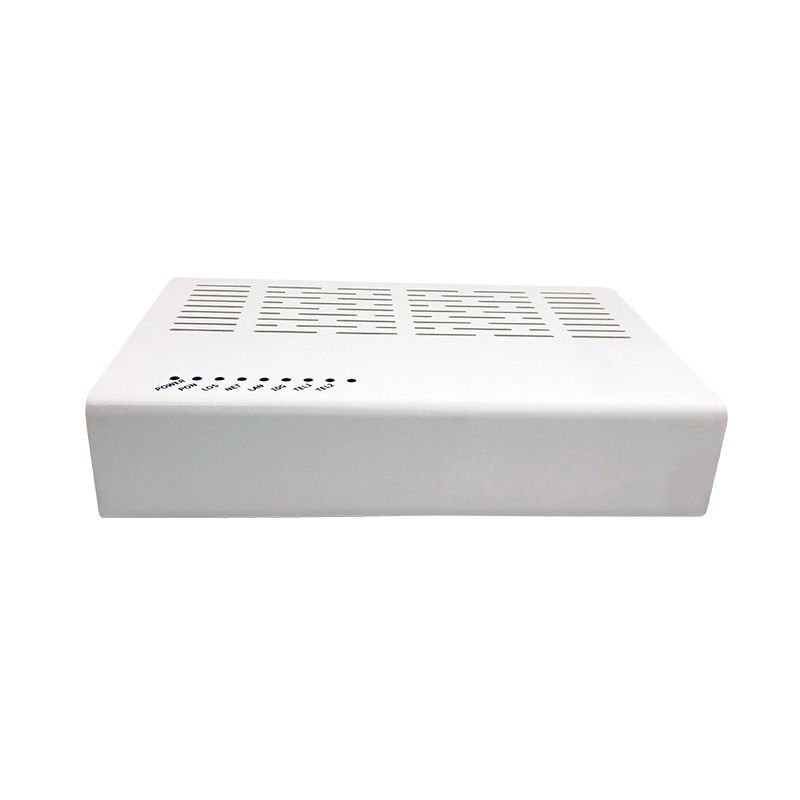

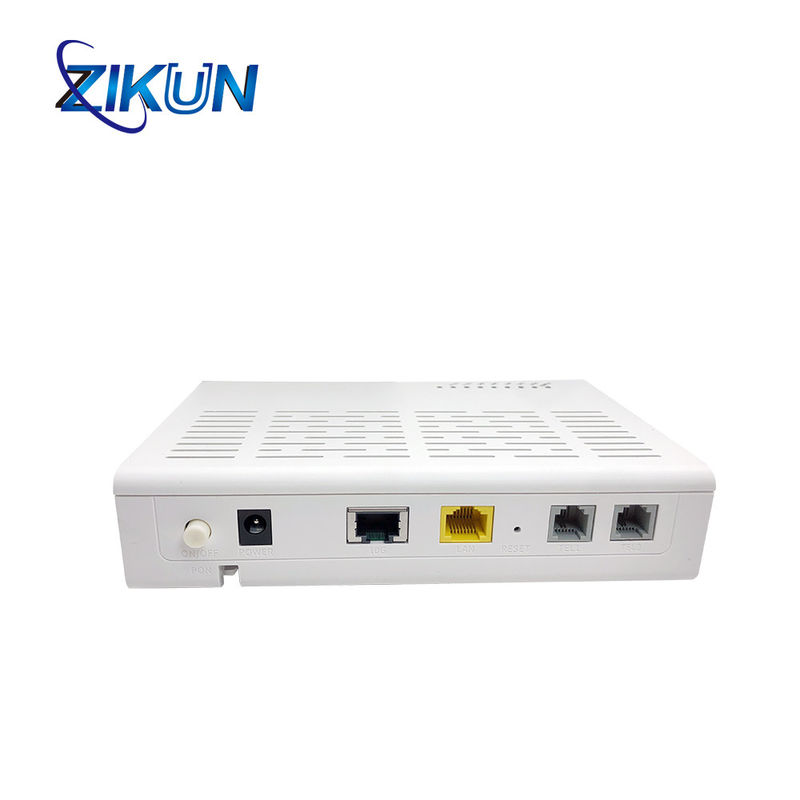

10GE XGS-PON GPON ONU 1GE 2VOIP ZC-512N Optical Network Terminal
Introduction
ZC-512N is a XGS-PON Optical Network Terminal(HGU) designed for FTTH scenario. It supports L3 function to help subscriber construct intelligent home network. It provides subscribers rich, colorful, individualized, convenient and comfortable services including voice(VoIP), video (IPTV) and high speed internet access.
Specifications
| GPON interface(NNI):1 x XGS-PON interface | ||
| Optical port | CLass N2 optical system | |
| Optical connector | SC/APC | |
| Receiving Sensitivity | -28dBm | |
| Overload optical power | -8 dBm | |
| Transmitting Optical Power | 0.5~5dBm | |
| Transmit rate | 9.953Gbit/s downstream; 9.953Gbps upstream | |
| Wavelength | Receiving(DOWN):1577nm；Transmitting(UP):1270nm | |
| Authentication | SN/ Password/LOID /LOID+Password authentication | |
|
User Network Interface(UNI):1*10GE+1GE+2VoIP(option) |
||
|
Ethernet Port
|
• Ethernet port-based VLAN tags and tag removal | |
| • VLAN transparent and aggregation | ||
| • MAC address learning | ||
| • Q-in-Q | ||
| • Auto-adaptive 10 Mbit/s, 100 Mbit/s ,1000 Mbit/s or 10000 Mbit/s | ||
|
POTS Port (option) |
• SIP/H.248 | |
| • Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls. | ||
| • G.711A/U, G.729 and G.722 encoding/decoding | ||
| • SDP protocol (RFC 2327 and RFC 4566) | ||
| • T.30/T.38/G.711 fax mode | ||
| • DTMF | ||
| • Emergency calls (with the SIP/H.248 protocol) | ||
| Product Function | ||
| GPON | • ITU-T G.9807.1 | |
| • ITU-T G.988 | ||
| • 32 TCONTs /256GEM ports | ||
| • 8 Egress queues per TCONT at least | ||
| • VLAN or VLAN plus priority gem mapping mode | ||
| • Performance monitoring: eth/Gem port | ||
| • Dying gasp | ||
| Layer 2 Features | • MAC learning (SVL)/aging | |
| • Support max frame length to 1518 bytes | ||
| • VLAN tagging for untagged packets | ||
| • Support VLAN 1-4094 | ||
|
• VLAN transparent/translation
|
||
| Layer 3 Features | • PPPoE/Static IP/DHCP/Bridge | |
| • NAT | ||
| • Port forwarding | ||
| • ALG, UPnP | ||
| • DDNS/DNS server/DNS client | ||
| • IPv6/IPv4 dual stack,and DS-Lite | ||
| • Static/Default routes | ||
| • Multiple services on one WAN port | ||
| • RIPv2 with passive mode | ||
| Multicast | • IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) | |
| • IGMP snooping and IGMP Proxy | ||
| • MLD v1/v2 | ||
| Qos | • Support 8 Queues with Strict Priority | |
| • Ethernet port rate limitation | ||
| • SP/WRR/SP+WRR | ||
| • Service flow classification | ||
| Management | • OMCI/TR069 | |
| • Web UI(Http by LAN and WAN) | ||
| • Telnet(Telnet by LAN and WAN) | ||
| • SSH management with CLI commands | ||
| • Dual-system software backup and rollback | ||
Physical Performance
| Dimensions ( W x Dx H) | 17.2CM*11.5CM*4CM | |
| Weight | About 400g | |
| Working temperature | 0°C ~ 45°C | |
| Working humidity | 5% RH to 95% RH (non-condensing) | |
| Power adapter input | 100–240 V AC, 50 / 60 Hz | |
| System power supply | 12V DC, 1 A | |
| Power consumption | <10W | |
