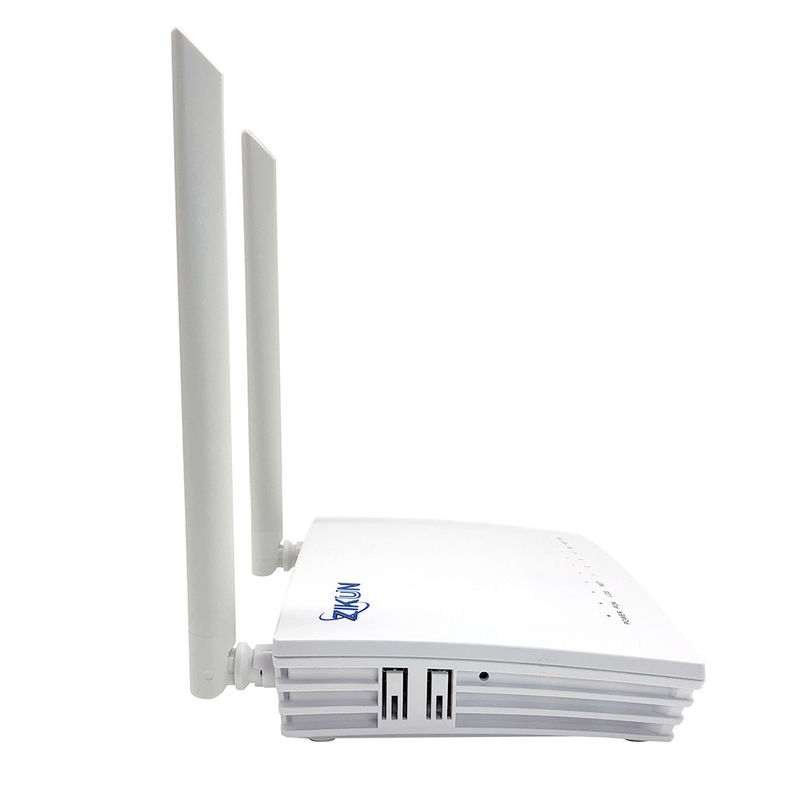

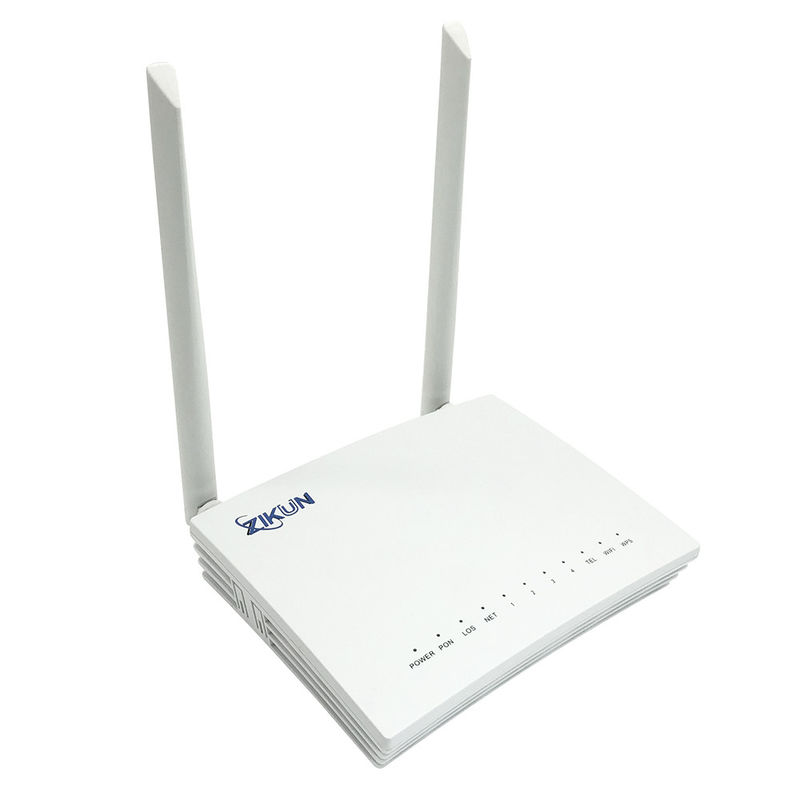

ZIKUN Smart Home Gateway ZC-520 GPON ONU 1GE 3FE 2.4G WiFi HGU ONT
ZC-520 is a GPON Optical Network Terminal(HGU) designed for FTTH scenario. It supports L3 function to help subscriber construct intelligent home network. It provides subscribers rich, colorful, individualized, convenient and comfortable services including voice(VoIP), video (IPTV) and high speed internet access.
Main Features
• Ideal solution for FTTH solution
• 4 * LAN ports(1* GE , 3*FE)
• 2.4G WiFi, 300Mbps wireless speed
• VoIP/IPTV supported
• High compatible with OLTs
• OAM/OMCI/TR069 Management
| Model | ZC-520 |
| User interface | 3*10/100M RJ45,1*10/100/1000M RJ45,1*USB,1*VOIP, 1*WiFi |
| PON |
Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps Network coverage radius: 20km Optical receive sensitivity: ≥-28dBm Luminous power: <0dBm Security: ONU authentication mechanism |
| WiFi | IEEE 802.11b/g/n WIFI((300Mbps) |
| Protocol |
Compliant with IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1b/g/n IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet–II, Ethernet-SNAP |
| VLAN |
Port-based VLAN GVRP IEEE 802.1Q VLAN |
| QoS |
Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent head of line WR, SP queue scheduling algorithm Port rate limit |
| Security |
IEEE 802.1x, access control based on port; support local and remote RADIUS CHAP,EAP certification Storm control, port protection |
| Management |
Support various management modes such as Web, TELNET Support debug function |
| Environment |
Operating temperature: 0℃~60℃; Operating humidity: 10%~85% (no-condensation) |
|
Storage temperature: -40℃~80℃; Storage humidity: 5%~95% (no-condensation) |
|
| Power supply |
Input AC 110~240V Output DC 12V/1A |
|
Power Consumption |
12W |
