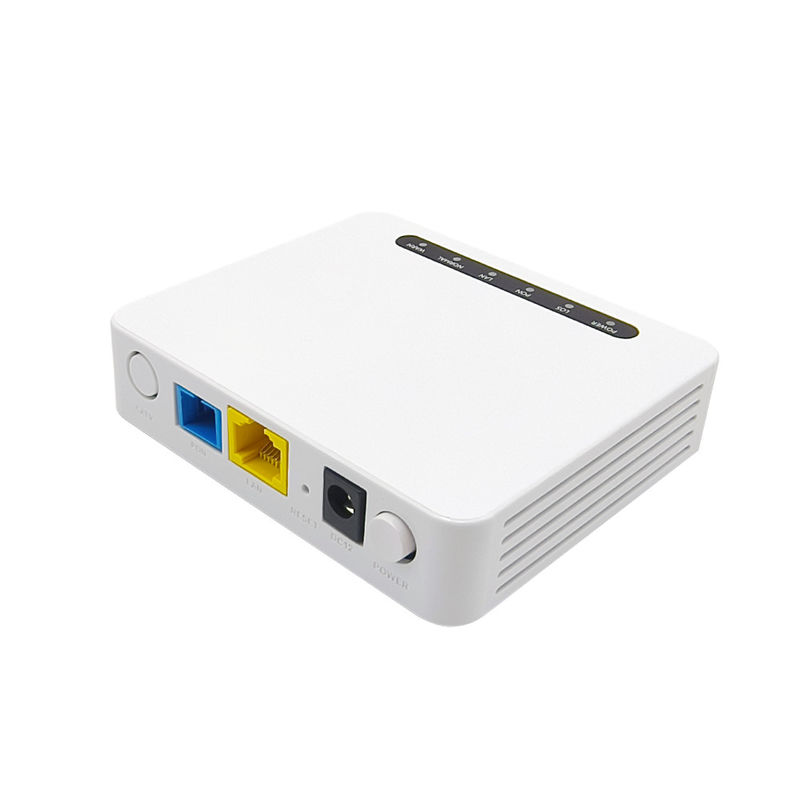

Zikun ZC-501 XPON ONU 1GE DUAL MODE Auto-negotiation ONT
The ZC-501 is a XPON ONT with one 10/100/1000M Ethernet port in FTTH application, Usually 501 applies in two scenarios: one provide a GE interface to access PC or laptop directly, the other is collaborate with RG to provide service assurance for voice, video and high-speed internet access and the RG provides rich subscriber interface to access IP Phone, STB, PC.
item
|
value
|
Model Number
|
ZC-501
|
Type
|
ONU
|
Place of Origin
|
China
|
Brand Name
|
ZIKUN
|
Use
|
FTTH
|
Warranty Time
|
1YEAR
|
Network
|
Wireless Lan, Wired LAN, wifi
|
Product name
|
1GE G/EPON ONU ONT
|
fiber type
|
single
|
Wavelength
|
Tx 1310nm, Rx 1490nm
|
Sensitivity
|
<-28dBm (1490nm)
|
Certification
|
CE RoHS
|
Color
|
White
|
Power
|
DC 5V 1A
|
Origin place
|
China
|
dimention
|
83mm X 69mm X 28mm
|
weight
|
0.35kg
|
