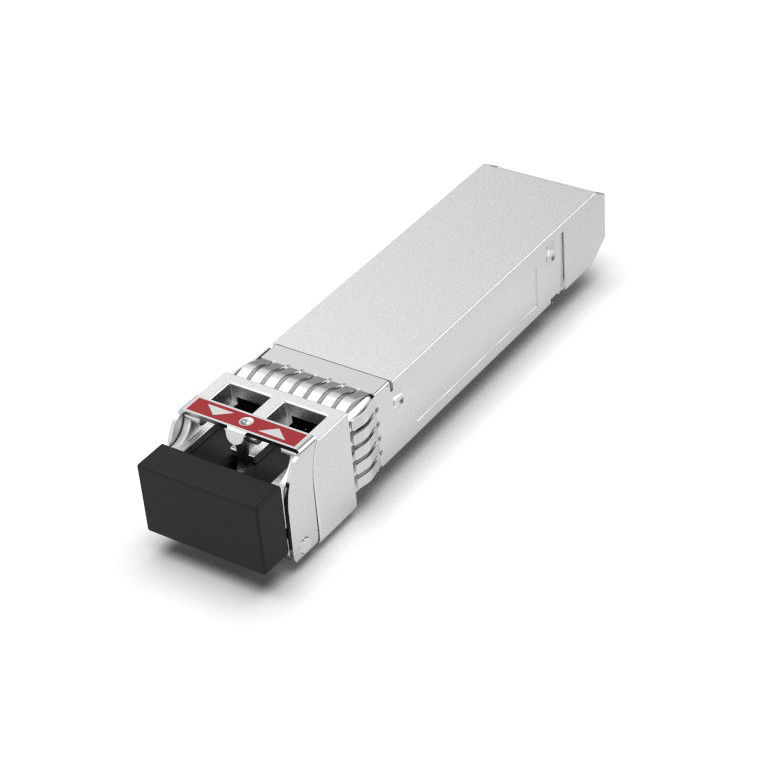

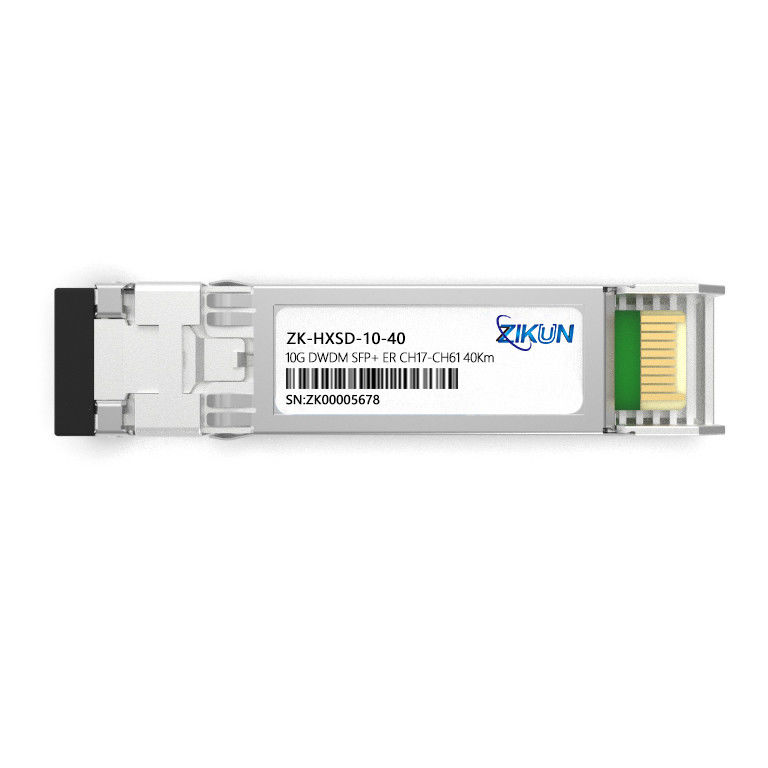

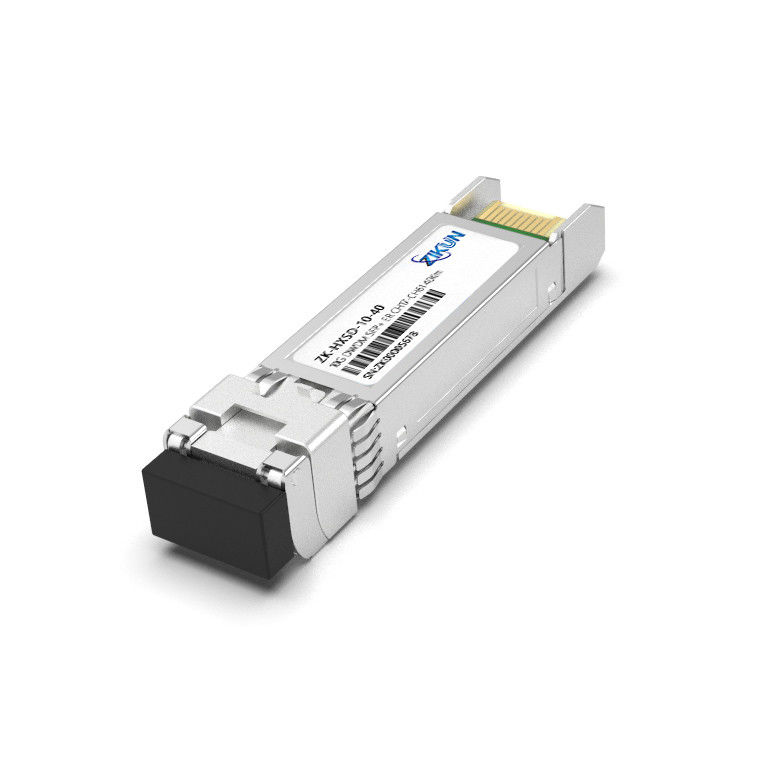

10G DWDM SFP+ ER CH17-CH61 40Km SFP Module Optical Fiber Optic Transceiver
Product Features
⚫ Up to 11.3Gb/s data links
⚫ DWDM EML transmitter and PIN receiver
⚫ 100 GHz ITU channel spacing with integrated wavelength locker
⚫ Up to 40km on 9/125µm SMF
⚫ Hot-pluggable SFP+ footprint
⚫ Duplex LC/UPC type pluggable optical interface
⚫ RoHS compliant and lead-free
⚫ Support Digital Diagnostic interface
⚫ Single +3.3V power supply
⚫ Compliant with SFF+MSA and SFF-8472
⚫ Metal enclosure, for lower EMI
⚫ Meet ESD requirements, resist 8KV direct contact voltage
⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C
Ordering Information
|
Product Number |
Data Rate (Gb/s) |
Channel |
Reach (km) |
LD |
Tx Power (dBm) |
PD |
Rx Sens (dBm) |
Temperature (C) |
|
ZK-HXSD-10-40C |
10.3125 |
CH17 ~ CH61 |
40 |
EML |
0~4 |
PIN |
< -15.8 |
0~70 |
|
ZK-HXSD-10-40I |
10.3125 |
CH17~ CH61 |
40 |
EML |
0~4 |
PIN |
< -15.8 |
-40~85 |
