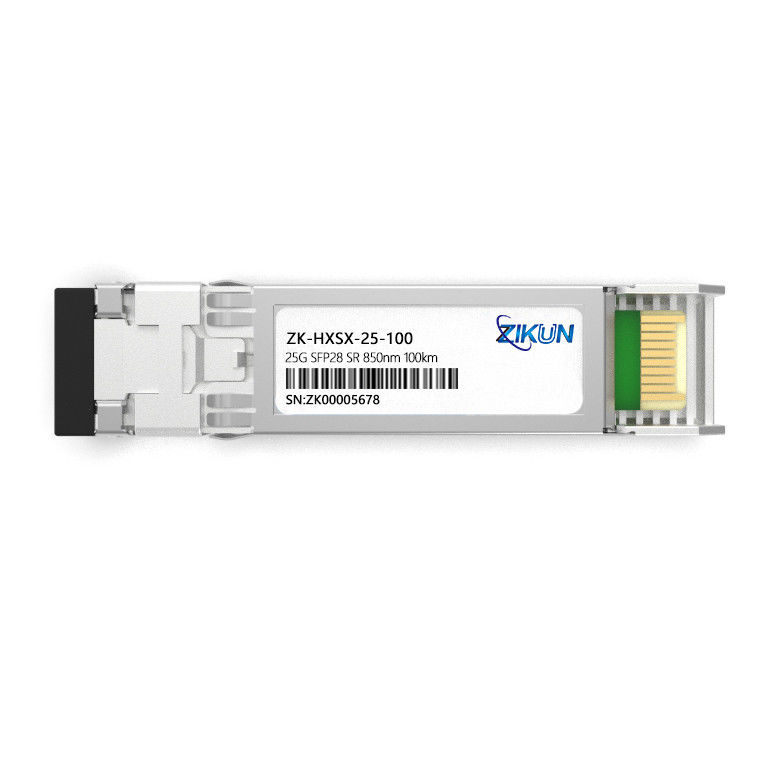

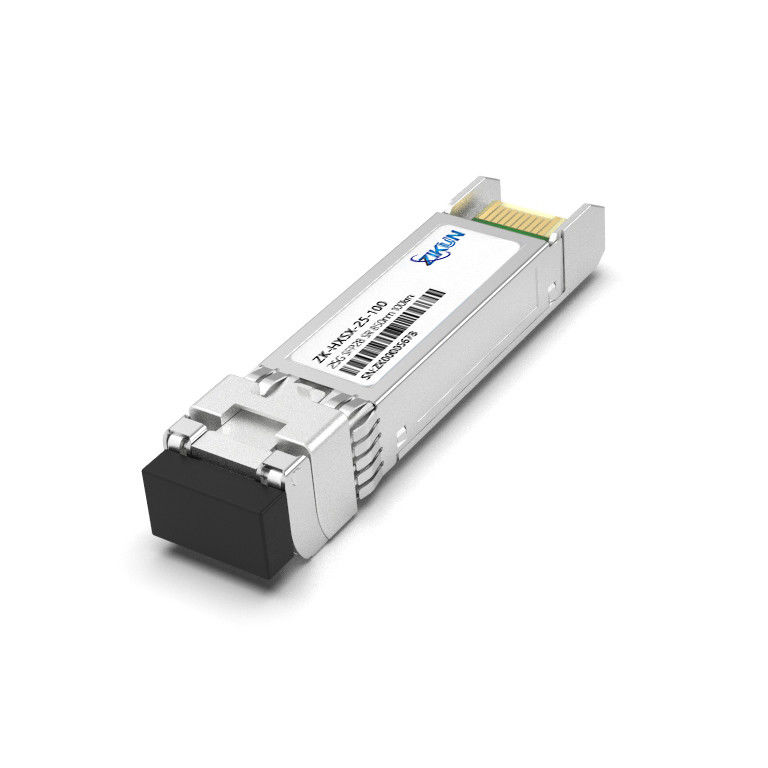

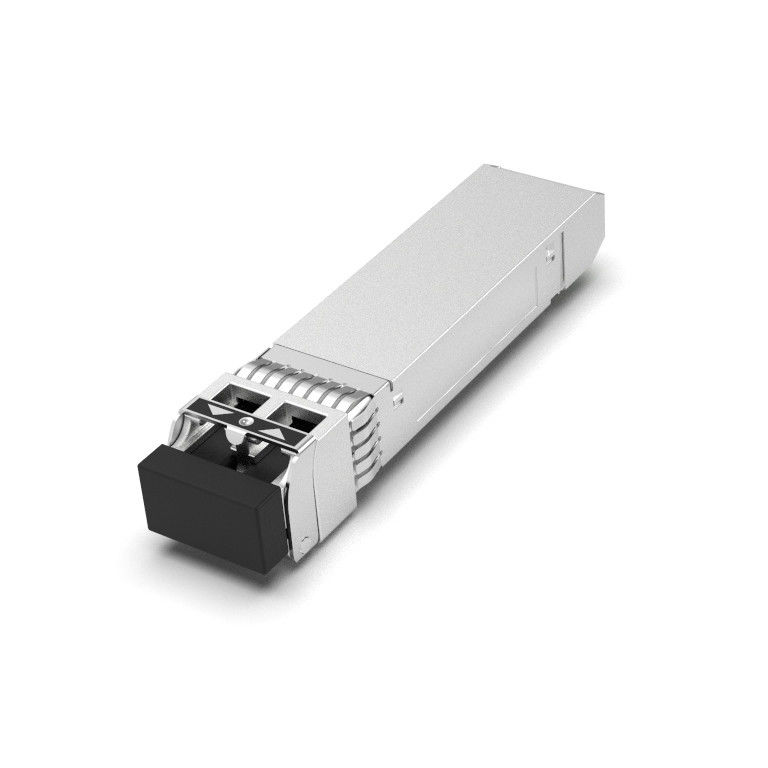

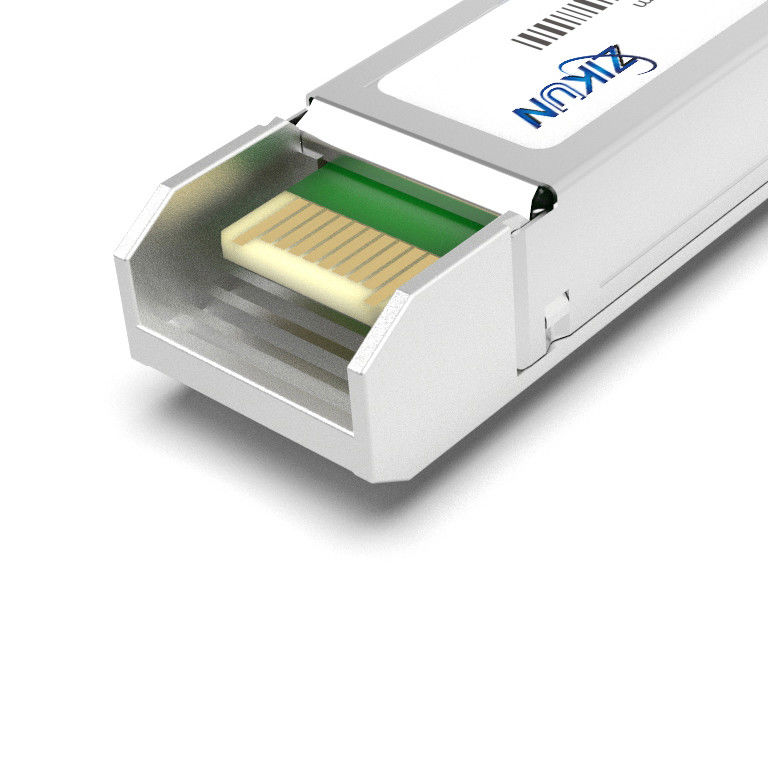

25G SFP28 SR 850nm 100km SFP Module Optical Fiber Optic Transceiver
Product Features
⚫ Up to 25Gb/s data links
⚫ 850nm VCSEL laser and PIN receiver
⚫ Up to 100m on 50/125um MMF
⚫ Hot-pluggable SFP footprint
⚫ Digital diagnostic capabilities
⚫ Class 1 laser safety certified
⚫ Cost effective SFP28 solution, enables higher port densities and greater bandwidth
⚫ RoHS-10 compliant and lead-free
⚫ Single +3.3V power supply
⚫ 2-wire interface for management specifications compliant
with SFF 8472 digital diagnostic interface for optical transceivers
⚫ All-metal housing for superior EMI performance
⚫ Case operating temperature : 0°C to +70°C
Ordering Information
|
Product Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Reach (m) |
LD |
Tx Power (dBm) |
PD |
Rx Sens (dBm) |
Temperature (C) |
|
ZK-HXSX-25-100C |
25 |
850 |
100 |
VCSEL |
-8.4~2.4 |
PIN |
< -10 |
0~70 |
