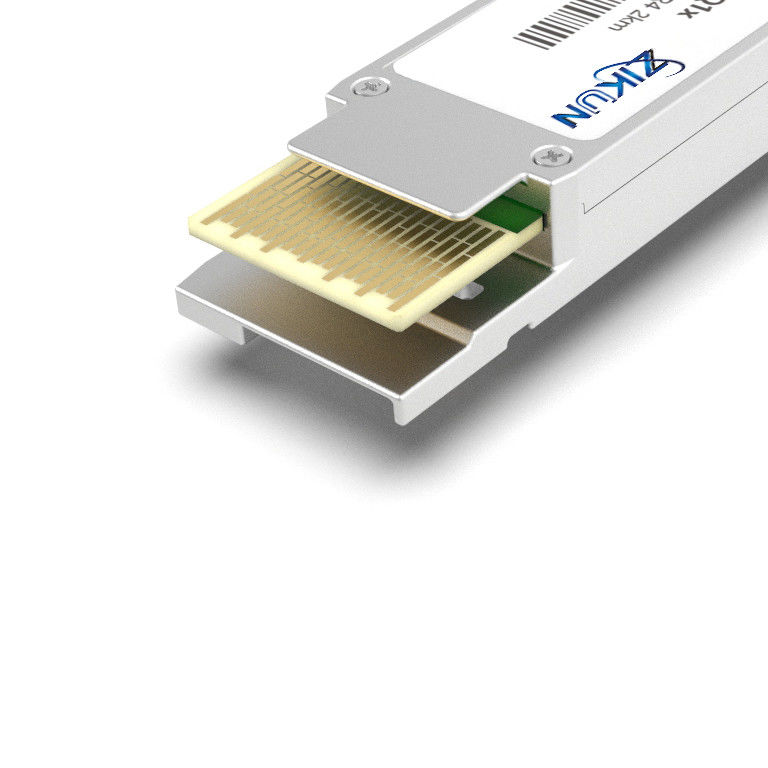

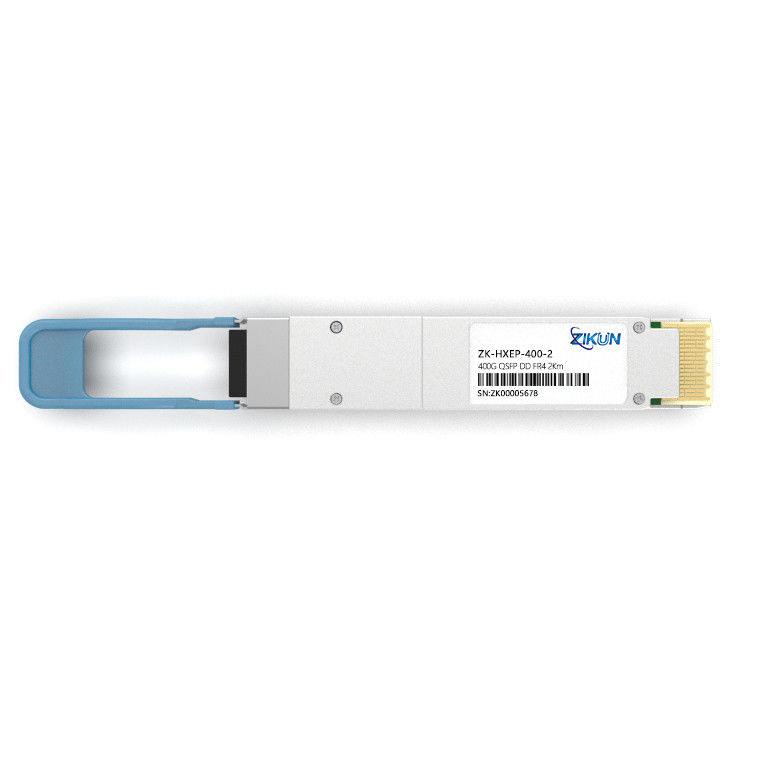

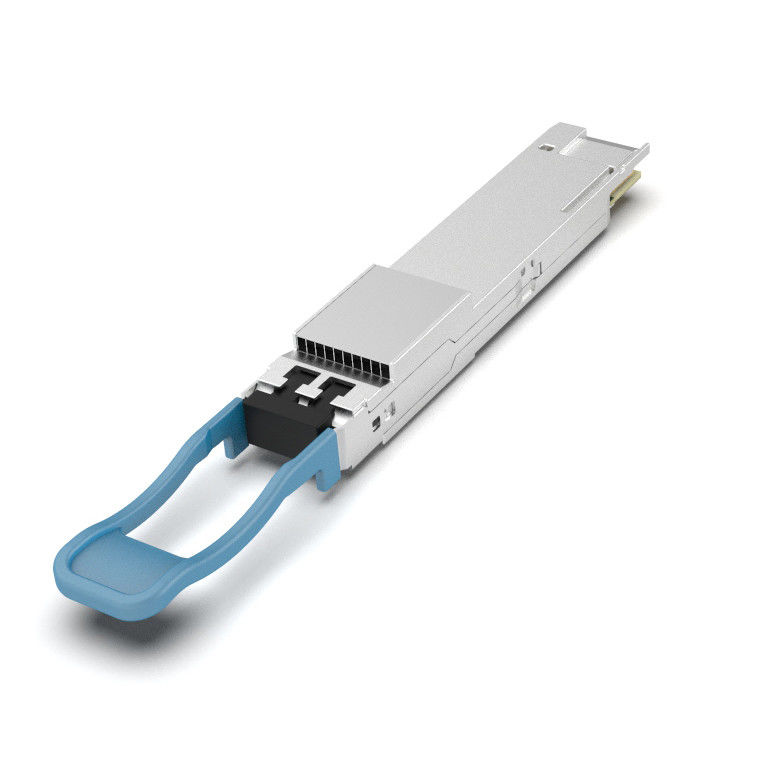

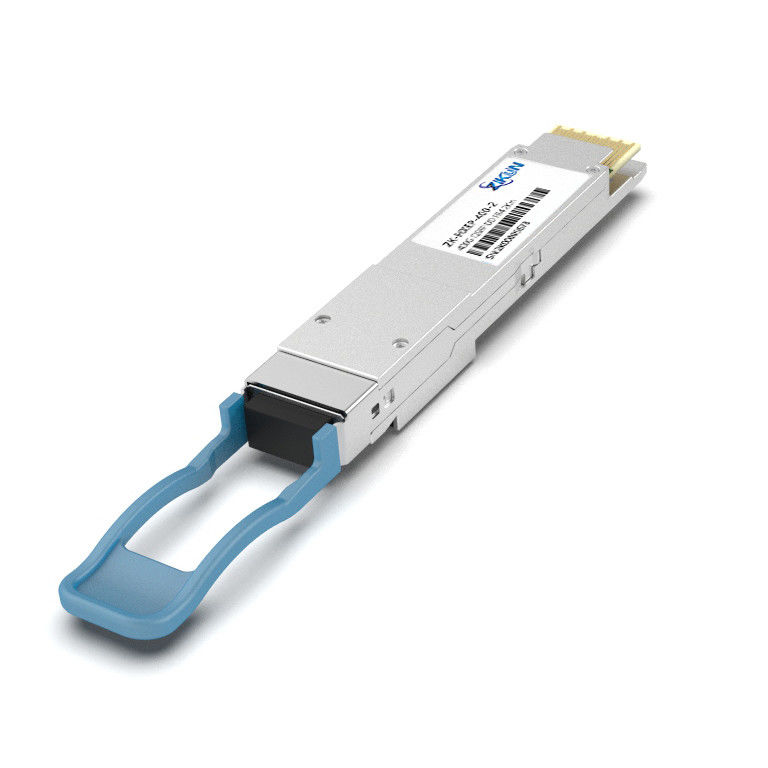

SFP Module 400G QSFP DD FR4 2Km Optical Fiber Optic Transceiver
Product Features
⚫ Supports 400GBASE-FR4
⚫ Lane bit rate 106.25 Gb/s with PAM4
⚫ CWDM4(1271/1291/1311/1331nm) EML laser and PIN receiver
⚫ Up to 2km transmission on SMF
⚫ 8x53.125Gb/s with PAM4 electrical interface (400GAUI-8)
⚫ Support Digital Diagnostic interface
⚫ QSFP-DD MSA package with duplex LC connector
⚫ RoHS-10 compliant and lead-free
⚫ Compliant to QSFP-DD MSA standard
⚫ Single +3.3V power supply
⚫ Maximum power consumption 12 W
⚫ All-metal housing for superior EMI performance
⚫ Case operating temperature : 0°C to +70°C
Ordering Information
|
Product Number |
Data Rate (Gb/s) |
Wavelen gth(nm) |
Reach (km) |
LD |
Tx Power (dBm) |
PD |
Rx Sens (dBm ) |
Temperature (C) |
|
ZK-HXEP-400-2C |
400 |
1271nm/ 1291nm/ 1311nm/ 1331nm |
2 |
EML CWDM |
-6.0~4.0 |
PIN |
< -5 |
0~70 |
