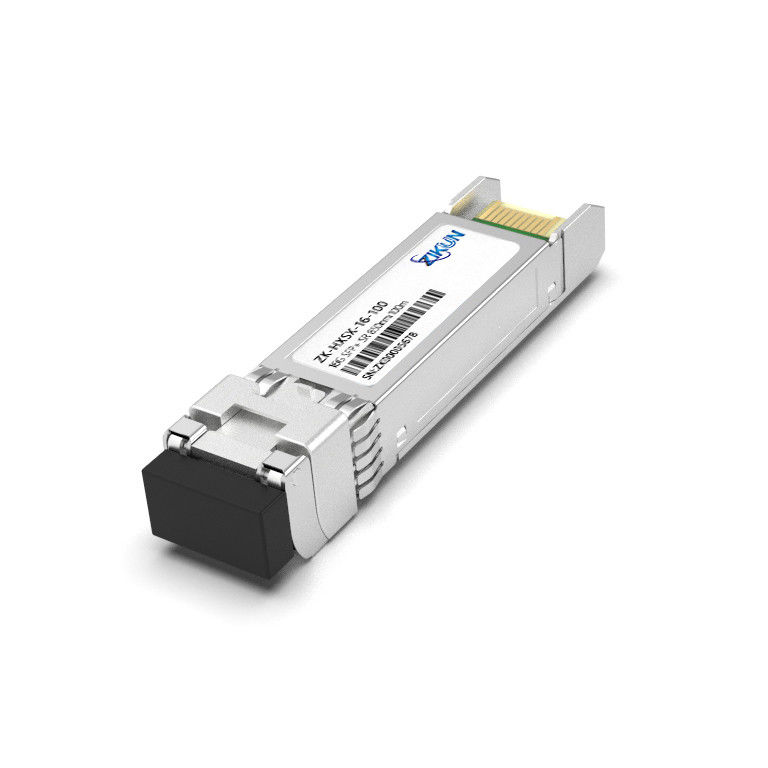

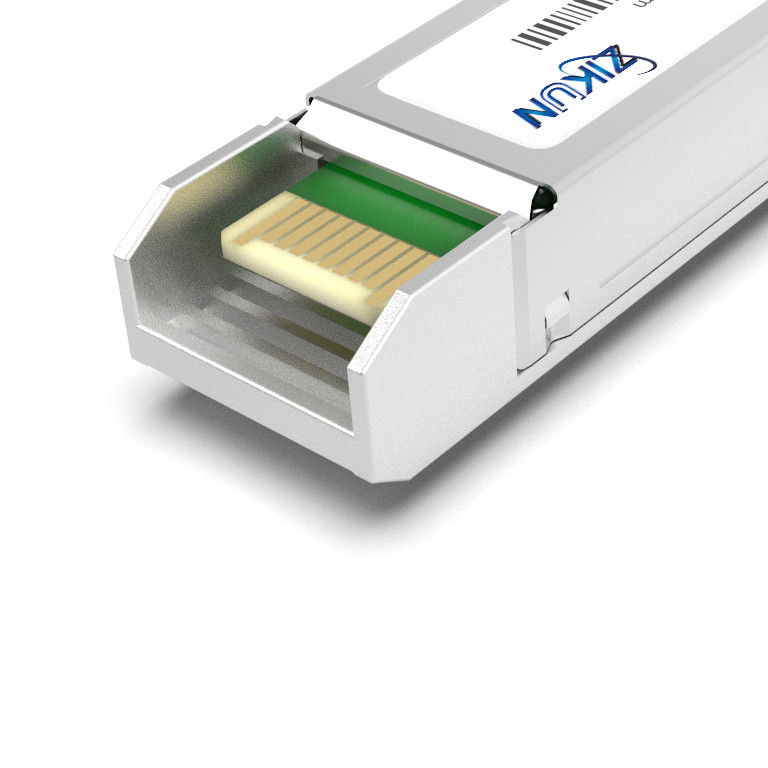

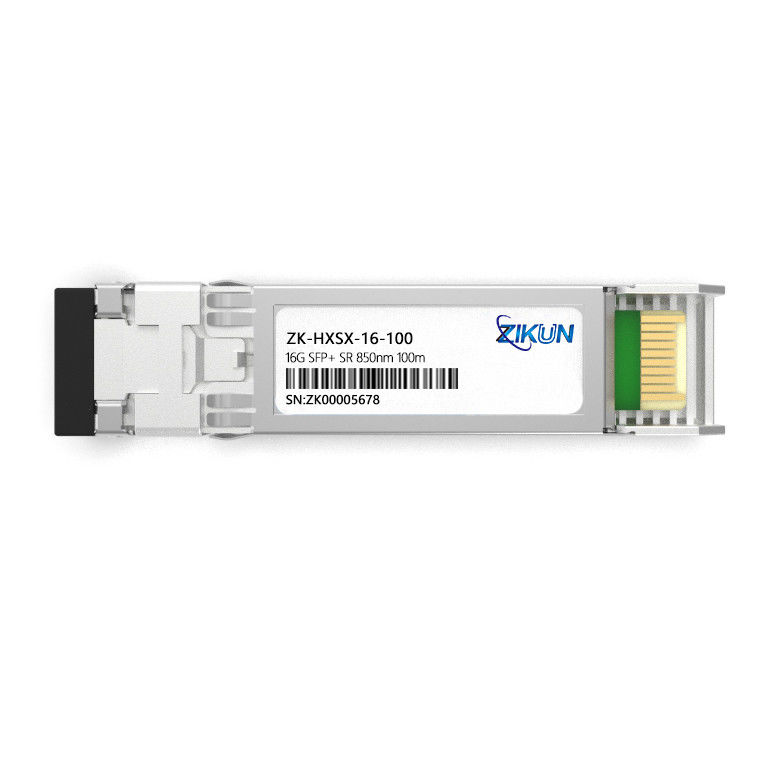

SFP Module 16G SFP+ SR 850nm 100m Optical Fiber Optic Transceiver
Product Features
⚫ Up to 14.025Gb/s data links
⚫ Hot-pluggable SFP+ footprint
⚫ Duplex LC type pluggable optical interface
⚫ 100m on high-bandwidth 50/125um(OM3) MMF
⚫ Build-in Dual CDR at 14.025Gb/s and bypass at 4.25Gb/s and 8.5Gb/s
⚫ Uncooled 850nm VCSEL Laser
⚫ All-metal housing for superior EMI performance
⚫ Meet ESD requirements ,resist 8KV direct contact voltage
⚫ RoHS- 10 compliant and lead-free
⚫ Support Digital Monitoring interface
⚫ Single +3.3V power supply
⚫ Compliant with SFF+MSA and SFF-8472
⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C
Ordering Information
|
Product Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Reach (km) |
LD |
Tx Power (dBm) |
PD |
Rx Sens (dBm) |
Temperature (C) |
|
ZK-HXSX-16-100C |
14.025 |
850 |
0.1 |
VCSEL |
-7~ -1 |
PIN |
< -10 |
0~70 |
|
ZK-HXSX-16-100I |
14.025 |
850 |
0.1 |
VCSEL |
-7~ -1 |
PIN |
< -10 |
-40~85 |
