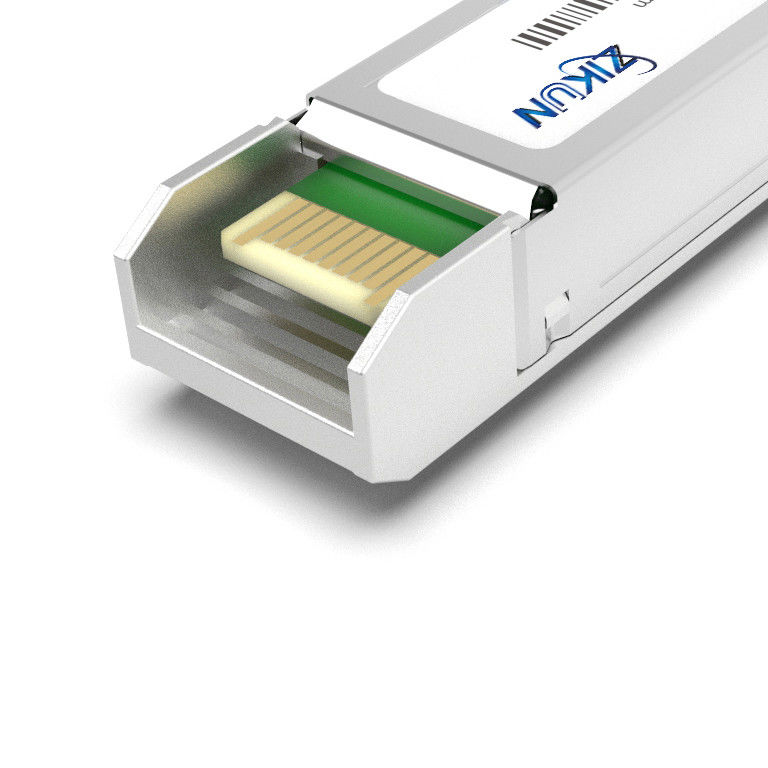

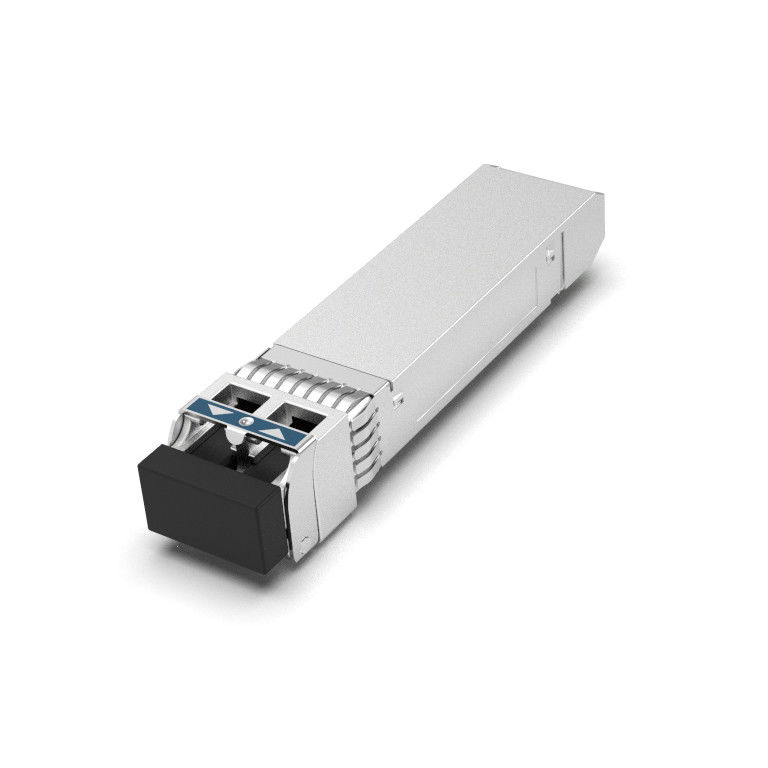

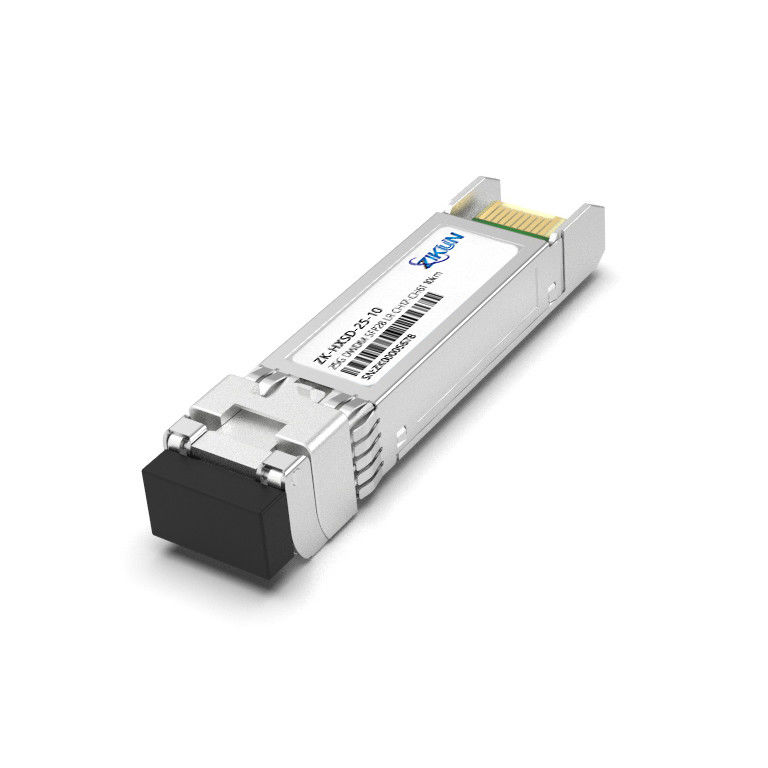

25G DWDM SFP28 LR CH17-CH61 10km SFP Module Optical Fiber Optic Transceiver
Product Features
⚫ Up to 25.78Gb/s data links
⚫ DWDM EML transmitter and PIN receiver
⚫ 100 GHz ITU channel spacing with integrated wavelength locker
⚫ Up to 10km on 9/125um SMF
⚫ Hot-pluggable SFP28 footprint
⚫ Support Digital Diagnostic interface
⚫ Duplex LC/UPC type pluggable optical interface
⚫ RoHS-10 compliant and lead-free
⚫ With CDR function
⚫ Single +3.3V power supply
⚫ Compliant with SFF+MSA and SFF-8472
⚫ Metal enclosure, for lower EMI
⚫ Meet ESD requirements, resist 8KV direct contact voltage
⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C
Ordering Information
|
Product Number |
Data Rate (Gb/s) |
Channel |
Reach (km) |
LD |
Tx Power (dBm) |
PD |
Rx Sens (dBm) |
Temperature (C) |
|
ZK-HXSD-25-10C |
25 |
Ch17-61 |
10 |
EML |
-1 ~4 |
PIN |
< -9 |
0~70 |
|
ZK-HXSD-25-10I |
25 |
Ch17-61 |
10 |
EML |
-1 ~4 |
PIN |
< -9 |
-40~85 |
