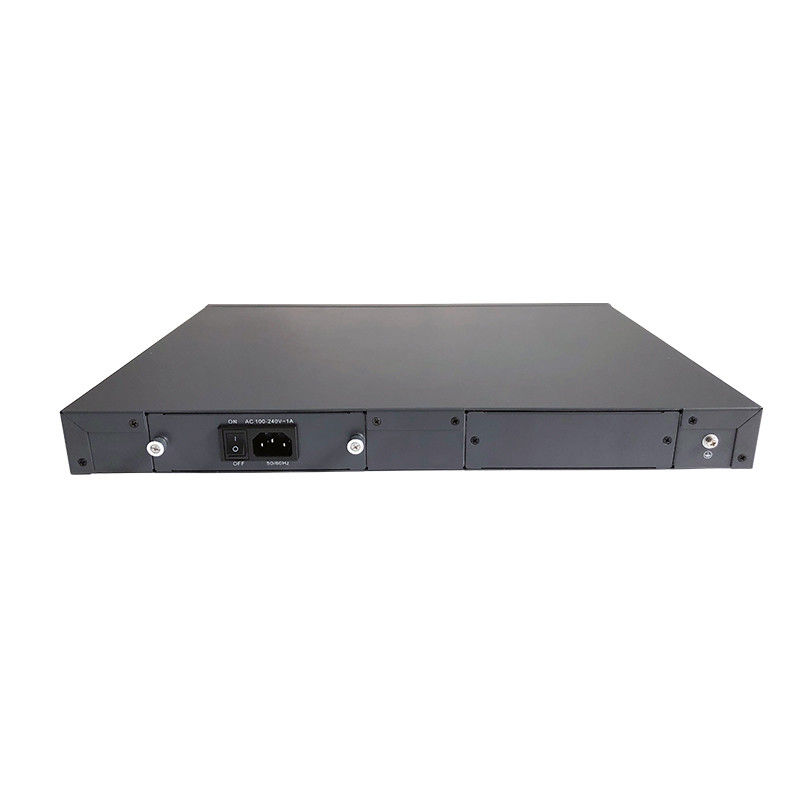

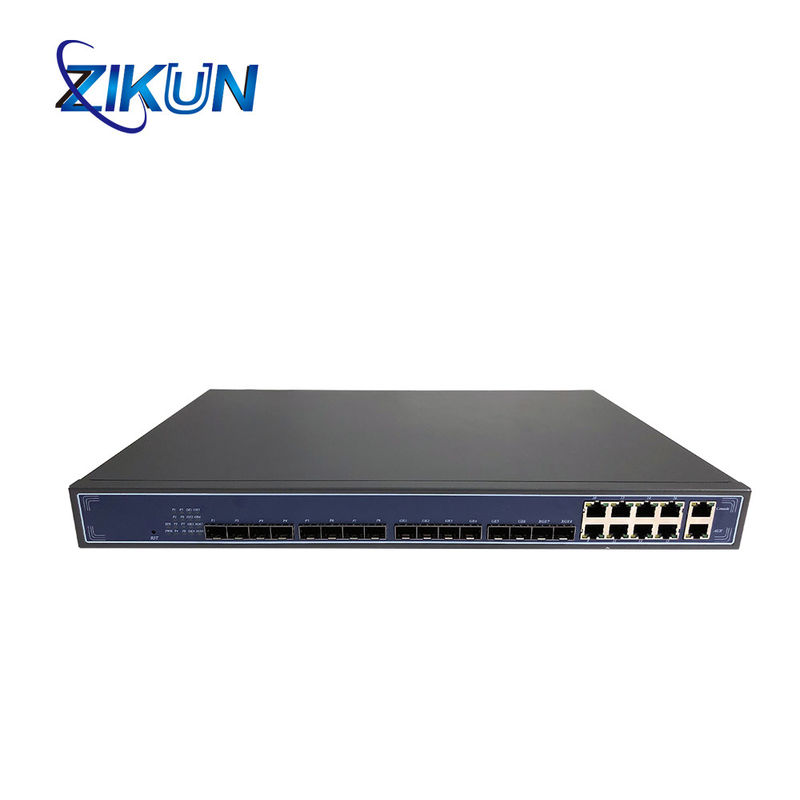

ZC-1008G GPON OLT provides 8 GPON ports, 8GE copper RJ45 Ethernet ports , 6 SFP(GE) and 2*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
ZC-1008G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network.
| Parameter | Specifications |
| PON standard | GPON ITU-T G.984.x |
|
PON interface |
16*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30d Bm(Saturation Optical - 12d Bm). Power,Transmitting optical power: +3 ~ +7d BmTransmission distance: 20KM. Max splitting ratio1:128 |
| Upstream 2.488G ,Downstream 1.244G | |
| Wavelength | Tx1310nm, Rx 1490nm |
|
Uplink |
8*copper Ethernet ports 10/100/1000M auto-negotiation |
| 6*GE(SFP) | |
| 2*10GE(SFP+) | |
| Layer 3 | Support static route, RIP v1/v2, OSFP v2, ARP proxy |
| Management Ports | 1*10/ 100BASE-T out-band port, 1*CONSOLE port |
| Management Mode | SNMP, Telnet, CLI, WEB |
| VLAN | Tag / Un-tag,VLAN transmission,QinQ |
| Operating condition | Operating temp: -5 C~ +55C |
| Storing condition | Storing temp: -40C ~ +85C |
| Humidity | 5~90%(non-condensing) |
| Power consumption | ≤45W |
| Dimension | 445mm×321mm×46mm (L×W×H) |
| Net weight | 4.55Kg |
