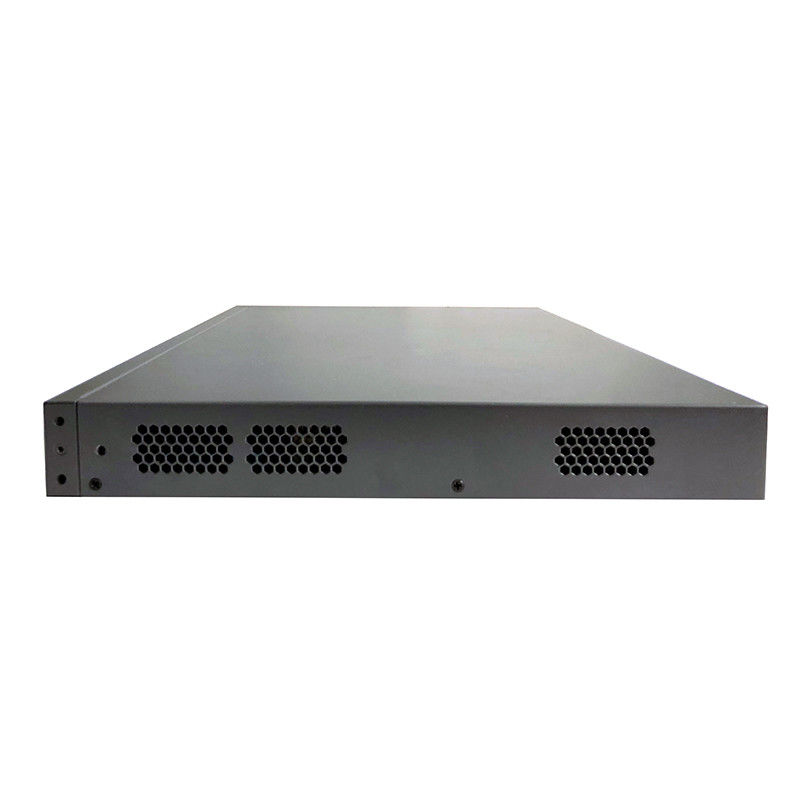

ZC-P1008G GPON OLT provides 8 GPON ports, 8GE copper RJ45 Ethernet ports , 6 SFP(GE) and 2*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
For other technical specifications, see the following table:
| Product | PON Interface | Uplink |
| ZC-P1008G | 8*GPON Port | 8×GE(RJ45)+8×GE(SFP)+2×10GE(SFP+) |
Technical Specifications
| Parameter | Specifications |
| PON standard | GPON ITU-T G.984.x |
|
PON interface |
16*GPON SFP Ports , Receiving sensitivity: ≤ -30d Bm(Saturation Optical - 12d Bm). Power,Transmitting optical power: +3 ~ +7d BmTransmission distance: 20KM. Max splitting ratio1:128 |
| Upstream 2.488G ,Downstream 1.244G | |
| Wavelength | Tx1490nm, Rx 1310nm |
|
Uplink |
8*copper Ethernet ports 10/100/1000M auto-negotiation |
| 6*GE(SFP) | |
| 2*10GE(SFP+) | |
| Layer 3 | Support static route, RIP v1/v2, OSFP v2, ARP proxy |
| Management Ports | 1*10/ 100BASE-T out-band port, 1*CONSOLE port |
| Management Mode | SNMP, Telnet, CLI, WEB ,SSHv1/v2 |
| Backplane | 128Gbps |
| MAC table | 16K |
| VLAN | Tag / Un-tag,VLAN transmission,QinQ |
| Operating condition | Operating temp: -5 C~ +55C |
| Storing condition | Storing temp: -40C ~ +85C |
| Humidity | 5~90%(non-condensing) |
| Power consumption | AC100~240V, 47/63Hz(DC:-48V Option) |
| Power consumption | ≤45W |
| Dimension | 445mm×321mm×46mm (L×W×H) |
| Net weight | 4.55Kg |
