Overview

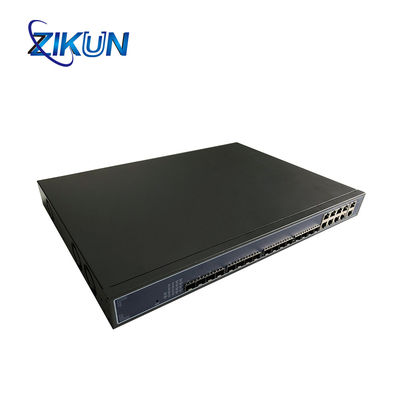

ZC-1008G GPON OLT provides 8 GPON ports, 8GE copper RJ45 Ethernet ports , 6 SFP(GE) and 2*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible andeasy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.
For other technical specifications, see the following table:
| Product | PON Interface | Uplink | Chipset |
| ZC-1008G | 8*GPON Port | 8×GE(RJ45)+6×GE(SFP)+2×10GE(SFP+) |
BroadCom |
Software Feature
| Item | ZC-1008G | ||
| Chassis | Rack | 1U 19 Inch Standard Box | |
|
GE/10GE Uplink Port |
QTY | 8 | |
| RJ45(GE) | 6 | ||
| SFP(GE) | 2 | ||
| SFP+(10GE) | 2 | ||
| GPON Port | QTY | 8 | |
| Physical Interface | SFP Slots | ||
| Connector Type | Class C++ | ||
| Max splitting ratio | 1:128 | ||
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | ||
|
PON Port Specification (Class C++ module) |
Transmission Distance | 20KM | |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | ||
| Wavelength | TX 1490nm, RX 1310nm | ||
| Connector | SC/UPC | ||
| Fiber Type | 9/125μm SMF | ||
| TX Power | +4.5~+10dBm | ||
| Rx Sensitivity | -30dBm | ||
| Saturation Optical Power | -12dBm | ||
| Dimension(L*W*H)(mm*mm*mm) | 445*321*43.6 | ||
| Weight(kg) | 4.55 | ||
| Power Supply | 220VAC | AC:100～240V, 47/63Hz | |
| DC Power Supply(DC:-48V) | √ | ||
| Double Power Module Hot Backup | √ | ||
| Max Power Consumption(W) | 45 | ||
| Operating Environment | Working Temperature | -0~+55℃ | |
| Storage Temperature | -40~+85℃ | ||
| Relative Humidity | 5~90%(non-conditioning) | ||
