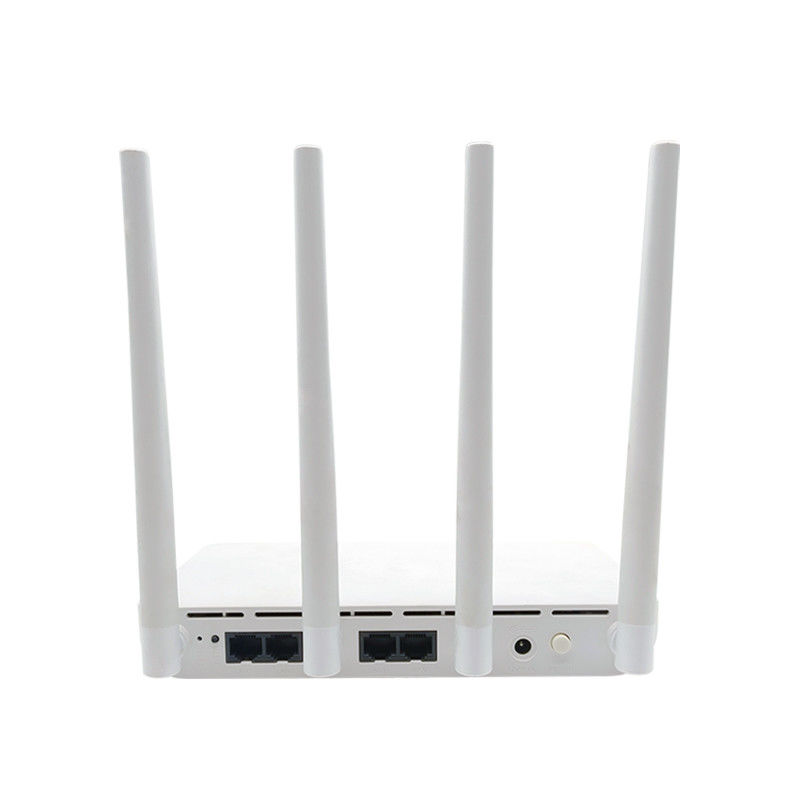

AC1200 Gigabit Mesh Wifi Router Dual Band Wireless ZC-R540 FTTx Solutions

AC1200 Gigabit Mesh Wifi Router Dual Band Wireless ZC-R540 FTTx Solutions

  • High Light

    Wireless Gigabit Mesh Wifi Router

    ,

    FTTx Gigabit Mesh Wifi Router

    ,

    Dual Band AC1200 Mesh Router

  • Modulation
    OFDM = BPSK,QPSK,16-QAM,64-QAM,256QAM
  • WiFi Antenna
    4x 5dBi External Antenna
  • Flash
    128MB
  • RAM
    128MB
  • Mesh Functions
    Support Mesh Networking
  • Dimensions
    200x122.5x29.7 Mm
  • Transmission Rate
    2.4G:Up To 300Mbps 5G:Up To 867Mbps
  • Brand Name
    ZIKUN
  • Model Number
    ZC-R540
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Delivery Time
    5-7 work days
  • Payment Terms
    T/T

AC1200 Gigabit Mesh Wifi Router Dual Band Wireless ZC-R540 FTTx Solutions

AC1200 Dual Band WiFi Router ZC-R540 5dBi 4 Antennas Zikun Router





Overview



ZC-R540 is a dual band gigabit wireless router specially designed for family with fibre access.Equipped with gigabit ports to support up to 1000 Mbps bandwidth access. The dual band provide 1167Mbps frequency, fully utilise the gigabit fibre.This router is equipped with 28nm 1 GHz CPU to provide better performance. The integrated dual-band technology combines both 2.4GHz and 5GHz under one Wi-Fi name; The 5GHz frequency band is set as priority and faster signal frequency would be allocated to you automatically by our dynamic optimization system. New designed 5 dBi antennas,meet the coverage requirement for small and medium household.







AC1200 Dual-band Gigabit Wireless Router

Smooth Internet Access



AC1200 Gigabit Mesh Wifi Router Dual Band Wireless ZC-R540 FTTx Solutions 0

AC1200 Dual-band Gigabit Wireless Router
Designed with full gigabit ports, support up to 1000 Mbps bandwidth access,Dual-band provide 1167 Mbps access, fully utilise the gigabit fibre.









Specifications



echnical item 4*GE+WiFi5
LAN interface4 4*10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
WiFi interface

Compliant with IEEE802.11b/g/n/ac

2.4GHz Operating frequency: 2.400-2.483GHz (WiFi 4)

5.0GHz Operating frequency: 5.150-5.825GHz (WiFi 5 wave 2)

WiFi:

2.4G:Up to 300Mbps
5G:Up to 867Mbps

LED 3, For Status of SYS,LAN1,LAN2
Operating Enviroment

Temperature: 0℃~+50℃

Humidity: 10%~90%(non-condensing)

Storing Enviroment

Temperature: -30℃~+60℃

Humidity: 10%~90%(non-condensing)







What is a mesh Wi-Fi router?

What is a mesh Wi-Fi router? Mesh systems join two or more Wi-Fi access points together, creating and sharing a single, seamless Wi-Fi network that can be expanded and set up to cover even the largest of homes or buildings.



If the Wi-Fi router that worked in your small apartment doesn't give you the wireless connectivity you want for a big house, then a mesh Wi-Fi router system may be the solution for you.



If you have a large home — at least 3,000 square feet — or one that has an unusual layout, more than two stories or interior brick walls, then you probably encounter Wi-Fi dead zones. This means your home could be a good candidate for a mesh system.
