SC / UPC Connector GPON ONT ONU 1GE 3FE 1USB 1POTS WiFi For FTTX Applications

SC / UPC Connector GPON ONT ONU 1GE 3FE 1USB 1POTS WiFi For FTTX Applications

Products - GPON ONT
  • High Light

    FTTX GPON ONT

    ,

    WiFi GPON ONT

    ,

    GPON ONU 1GE

  • GPON Interface（NNI）
    GPON
  • Optical Connector
    SC/UPC
  • User Network Interface（UNI）
    1GE+3FE+1POTS+WIFI+1USB
  • USB
    USB2.0 ，USB Backup
  • WLAN
    2 × 2 MIMO
  • Antenna Gain
    5 DBi，double External Antenna
  • Transmission Technology
    OMCI/TR069/Web UI
  • Dimensions ( W X Dx H)
    3.5CM*16.3CM*11.4CM
  • Brand Name
    ZIKUN
  • Model Number
    ZC-520 GPON
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Delivery Time
    5-15 work days
  • Payment Terms
    T/T

SC / UPC Connector GPON ONT ONU 1GE 3FE 1USB 1POTS WiFi For FTTX Applications

  • SC / UPC Connector GPON ONT ONU 1GE 3FE 1USB 1POTS WiFi For FTTX Applications
  • SC / UPC Connector GPON ONT ONU 1GE 3FE 1USB 1POTS WiFi For FTTX Applications
  • SC / UPC Connector GPON ONT ONU 1GE 3FE 1USB 1POTS WiFi For FTTX Applications
Get Price Contact Now

ZIKUN GPON ONT 1GE 3FE 1USB 1POTS WiFi ONU For FTTX Applications

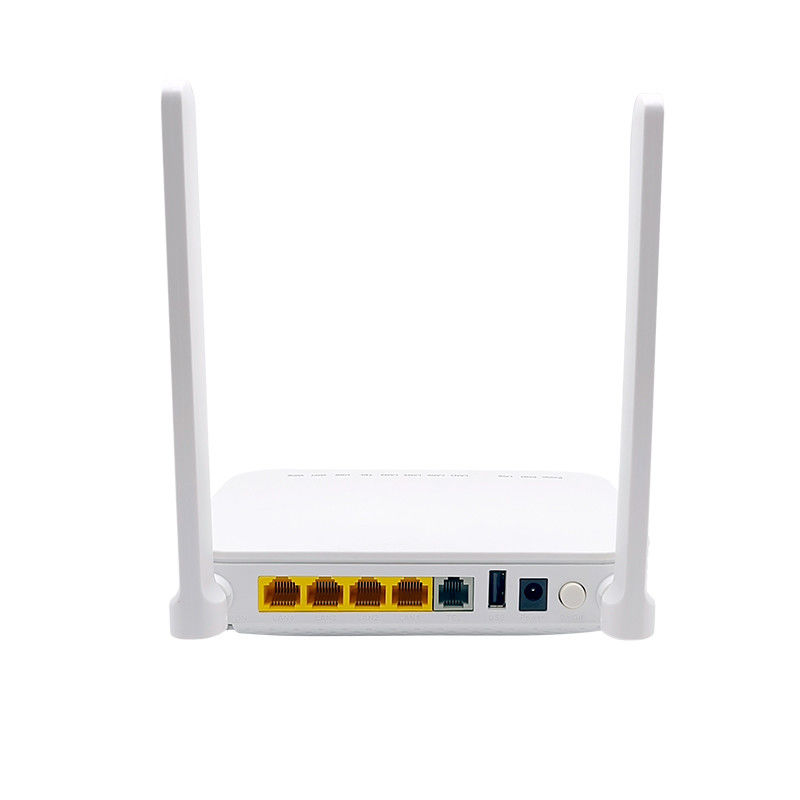

Product Description





ZC-520 GPON WiFi ONT supports the 1000Base-PX20+ standard, which has a maximum optical splitting ratio of 1:64 and a distance of 20 kilometers, as well as one uplink GPON port. When the Triple Play ONU is used in conjunction with an OLT, it may create a flexible network structure and provide total FTTx solutions.



ZC-520 GPON ONU Triple Play ONU offers 1*10/100M and 1*10/100/1000M Ethernet interface, 3FE, 1POTS, 1 GPON interface, supports WiFi function, external power supply adapter. It is mostly used in FTTH and FTTO applications.







GPON 1GE+3FE+1USB+1POTS+WiFi





SC / UPC Connector GPON ONT ONU 1GE 3FE 1USB 1POTS WiFi For FTTX Applications 0





Key Features

  • Support 802.11n WiFi function.
  • Support NAT, Firewall function.
  • Support IPv4 and IPv6 dual stack.
  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Integrated OAM remote configuration and maintenance function.
  • Support rich QinQ VLAN functions and IGMP Snooping multicast features.
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
  • The WAN port supports bridge, router and bridge/router mixed mode.








Specifications



Technical item 1GE+3FE+1POTS+WiFi
PON

1 G/EPON port(EPON PX20+ and GPON Class B+)

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
Wavelength Tx1310nm,Rx 1490nm
Optical SC/UPC connector
LAN

Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s,MAC address learning
POTS . SIP/ H.248
. Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls.
. G.711A/U, G.729 and G.722 encoding/decoding
. T.30/T.38/G.711 fax mode
. SDP protocol (RFC 2327 and RFC 4566)
. DTMF
WiFi

. IEEE 802.11 b/g/n (2.4G)
. 2 × 2 MIMO
. Antenna gain: 5 d Bi ,double external antenna
. Air interface rate:300 Mbit/s
. WMM
. Multiple SSIDs
. WPS

USB port

 . USB2.0 ,USB backup
. FTP-based network storage
. File/Print sharing based on SAMBA
. UPnP









Order Information



Product model Product specification Chipset SDRAM Memory
ZC-520GPON 1GE+3FE+1POTS+WIFI+1USB Hisilicon 64MB
