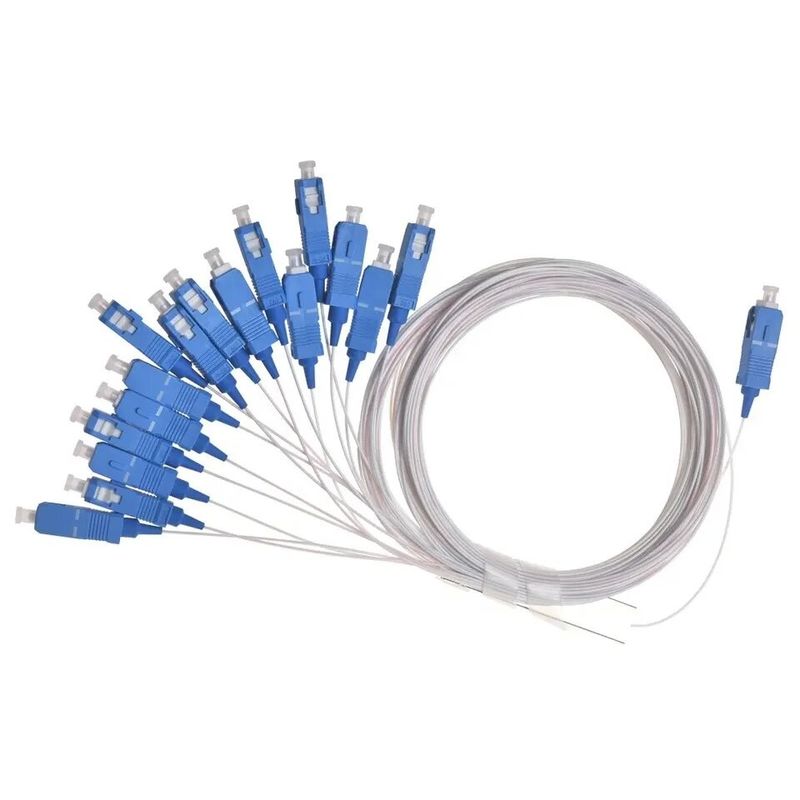

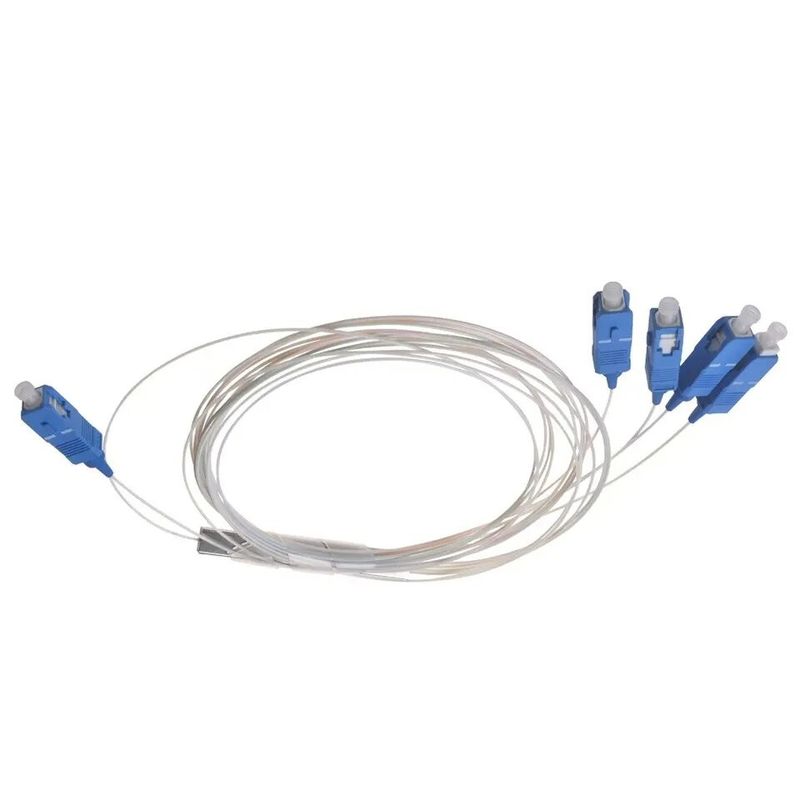

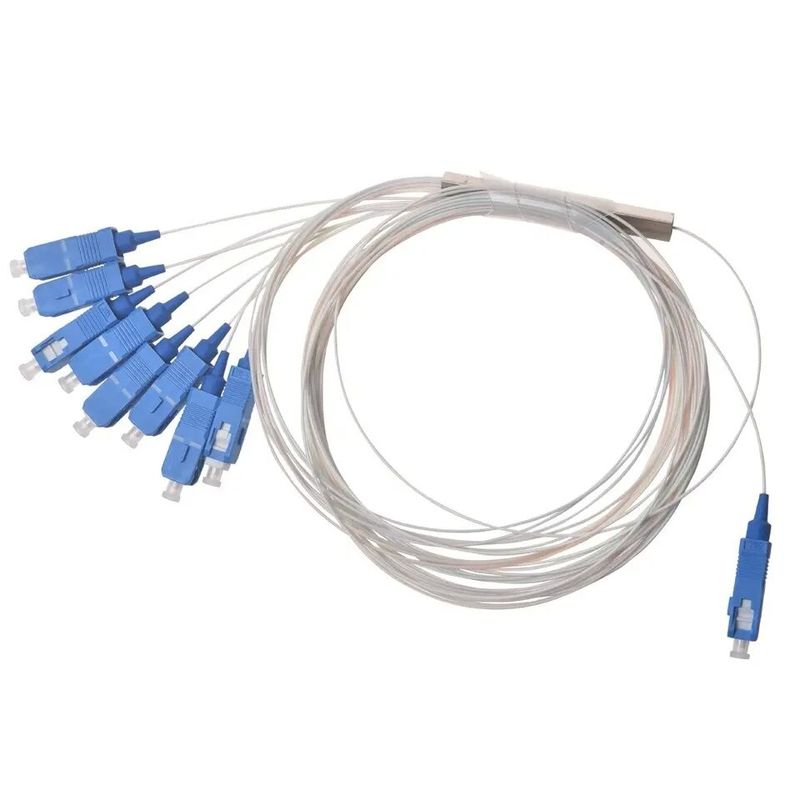

FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector

FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector

Products - Fiber Optic Splitter
  • High Light

    FTTX Fiber Optic Splitter 1x2

    ,

    FTTH Fiber Optic Splitter 1x4

    ,

    1x8 PLC Fiber Splitter

  • Certification
    CCC, RoHS, Ce
  • Model Number
    PLC Splitter
  • Type
    PLC Splitter, Fiber Optic Splitter
  • Use
    FTTH FTTX
  • Fiber Type
    G657A Or Customized
  • Fiber Length
    1m Or Customized
  • Brand Name
    ZIKUN
  • Minimum Order Quantity
    1-200
  • Price
    Negotiable
  • Delivery Time
    5-7work days
  • Payment Terms
    T/T

FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector

  • FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
  • FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
  • FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
Get Price Contact Now

PLC Splitter SC/APC connector 1x2 1x4 1x8 1x16 1m Steel-tube Fiber Optical



1. passive optical plc splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

2. Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.





Application

*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)

FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector 0

Parameters
1×2
1×4
1×8
1×16
1×32
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)(P/S Grade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
Loss Uniformit(dB)
0.6
0.6
0.8
1.2
1.5
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
Return Loss(dB)(P/S Grade)
55
55
55
55
55
Directivity(dB)
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.5
0.5
0.5
0.8
0.8
Temperature Stability (-40~85℃)(dB)
0.5
0.5
0.5
0.8
0.8
Operating Temperature(℃)
-40~+85
Storage Temperature(℃)
-40~+85
Device Dimension(mm)
60×7×4
60×7×4
60×7×4
60×12×4
80×20×6
