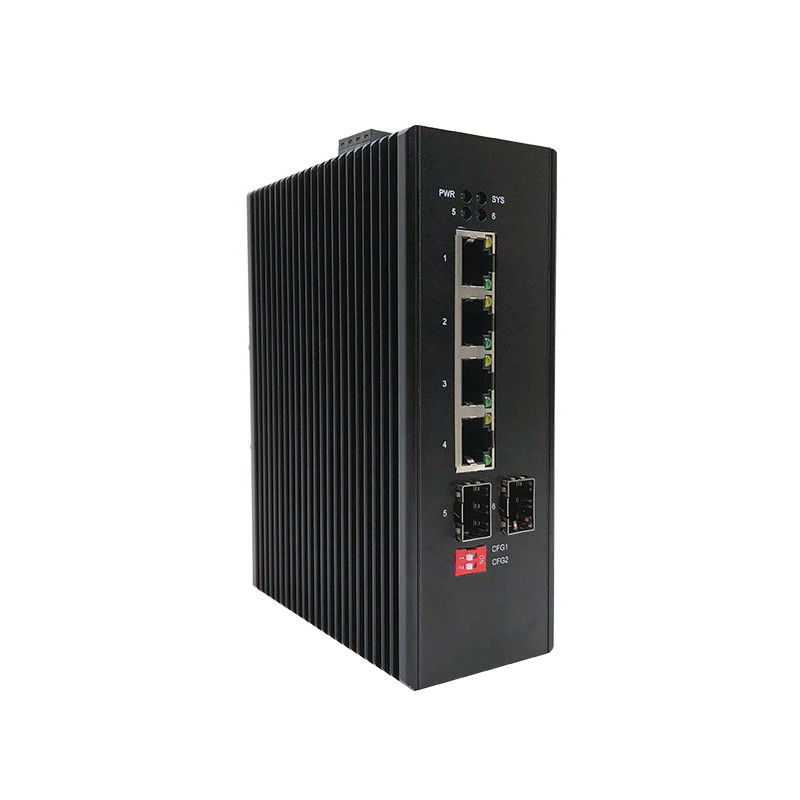

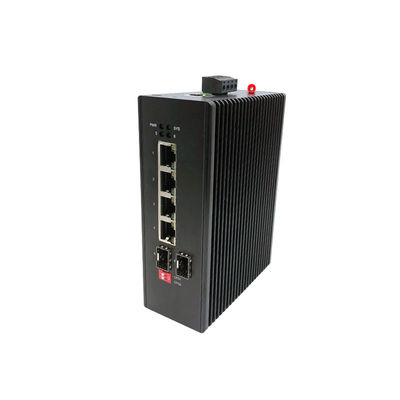

| Model | ZC-S2006MG | ZC-S2010MG |
| Gigabit optical port(GE SFP) | 2 | 2 |
| Gigabit electrical port(GE RJ-45) | 4 | 8 |
| RS232 Manage Port | ● | ● |
| Input voltage DC(V) | 48-54 | 48-54 |
| Power consumption)(W) | <7.5W | <9W |
| PoE Port | 1-4 | 1-8 |
| Max PoE consumption)(W) | 120 | 240 |
| Weight(kg) | 0.65 | 0.8 |
| Dimensions(mm) | 143X105X53 | 160X120X53 |
Specifications
| Provider Mode Ports | |
| Management Port | Support console |
| Power interface | Phoenix terminal, dual power supply redundancy (redundant power) |
| LED Indicators | Power,Status,Optical port indication |
| Cable type&Transmission distance | |
| Twisted-pair | 0-100m(CAT5e,CAT6) |
| Single mode fiber | 20/40/60/80/100KM |
| Multimode optical fibre | 550m |
| Network Topology | |
| Ring topology | Support |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Hybrid topology | Support |
| Electrical Specifications | |
| Input voltage | DC48-54V； |
| PoE Support | |
| PoE Protocol | 802.3af,802.3at |
| PoE Pin Assignment | 1,2+；3,6- |
| PoE Management | Support |
| Layer 2 Switching | |
| Switching capacity | 12G |
| Packet forwarding rate | 8.93Mpps |
| MAC address table | Comply with IEEE 802.1q standard; support MAC address automatic learning and aging; |
| VLAN Support and Quantity(VLAN) | Support 4094 VLANs; support port-based VLAN; |
| Buffer | S2006MG:1M；S2010MG:2M |
| Flow control | Support IEEE802.3x |
| Spanning Tree | Support STP,RSTP和MSTP |
| ERPS(G.8032) | Support single, tangent, and intersecting rings; support multiple instances |
| Port aggregation | Support static aggregation; supports dynamic aggregation (LACP) |
| Multicast | Support IGMP V1 Snooping；Support IGMP V2 Snooping； |
| Port Mirroring | Support port-based two-way mirroring |
| Storm Control | Support |
| Interface Counters | Support |
| NTP client | Support |
| TFTP Client | Support |
| Ping/tracert detection | Supportping(ipv4)；Support ping(ipv6)； |
| security feature | |
| Dot1x | Support port-based authentication; support MAC-based authentication; |
| Management Function | |
| Command Line(CLI) | Support |
| Management serial port(Console) | Support |
| Telnet | Support |
| WEB managent | Support |
| SNMP | Support SNMPv1/v2c/v3 |
| User Management | Support login authentication |
| RMON | Support statistics group; support history group; support alarm group; support event group |
| IPV4/IPV6 | Support |
| System Log | Support |
| Configuration File Download/Upload | Support |
| Upgrade Firmware | Support |
| Environmental conditions | |
| Operating temperature | -40℃~+85℃ |
| Storage/transport temperature | -40℃~+85℃ |
| Relative humidity | 5%~95% non-condensing |
| Thermal methods | Fanless design, natural heat dissipation |
| Mechanical Dimensions | |
| Installation Method | Clamp rail installation, hanging ear installation |
| EMC&INGRESS PROTECTION | |
| IP Level | IP40 |
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4 |
| Instantaneous pulse anti-jamming(EFI) | IEC 61000-4-4 Level 4 |
| Anti-static interference(ESD) | IEC 61000-4-2 Level 4 |
| Authentication | |
| Authentication | Ministry of Public Security,CCC/CE/FCC/RoHS |
| Accessories | |
| Accessories | Equipment, terminals, certificate, manual, power adapter (optional) |
