4G CPE Router LTE CAT4 CPE WIFI 4 Hotspot, Ethernet WAN / LAN ZC-CR502
Product Description

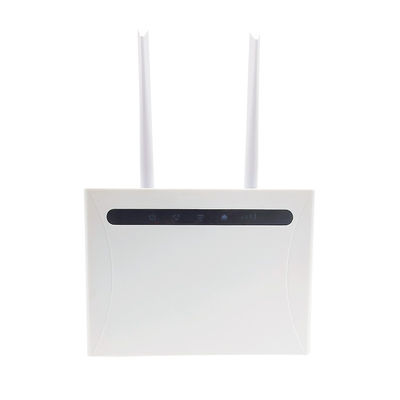

ZC-CR502 is a 4G wireless router that can achieve WiFi coverage.Using mainstream chip solution with low power consumption, high cost performance, high-end technology, high integration and other advantages.it supports TD-LTE / FDD LTE / WCDMA/GSM network standards for ALL NETCOM.it support WAN / LAN / WIFI ACCESS CAPACITY, and PLUG AND PLAY. The product is stable and reliable.Its theoretical speed can reach up to 150Mbps, making it easy to play games, watch ultra clear videos without stuttering, and live streaming smoothly with minimal latency.
Highlights
50Mbps High Speed
4G LTE Cat4 WiFi Routers with SIM Card Slot, 2×2 MIMO Internal Antennas for Home/Office
| Hardware specifications | ||
| CPU | MT7628 | |
| RAM | 64MB DDR | |
| FLash | 8MB | |
| Wired Network standards | IEEE802.3,IEEE802.3u | |
| Ethernet interface | 1*10/ 100Mbps WAN/ LAN port ,2*10/100Mb ps LAN port | |
| Antenna |
Antenna gain: 5 d Bi Four external antenna:2 X wifi antenna ,BUILT- IN 5DB patch 4G LTE antenan |
|
| 4G module |
EC200-CN LTE CAT4:150Mpbs downstream；50Mbps upstream； LTE FDD: B1/ B3/B5/ B8 LTE TDD: B34/ B38/B39/ B40/ B41 WCDMA: B1/ B5/ B8 GSM: 900/ 1800MHz |
|
| SIM Card | Standard SIM Card (25mm*15mm) | |
| Button | Reset ,WPS ,POWER | |
| Power | 12V/1A DC | |
| LED light | SYS ,NET ,WIFI ,ETH1 ,SIGLR1 | |
| Software specifications | ||
| Working mode | • WAN mode :PPPoE/ DHCP/Static ；Wireless relay | |
| Network |
• LAN/WAN tanslate ,DHCP Server ,VLAN ,Qos ,DDNS • VPN:PPTP Client/L2TP Client；Static route ；DMZ |
|
| Security | • MAC/ IP/ DNS Filter ,WPS ,Wi Fi Plan ,Remote management | |
| Others | • Time zone , Firmware Upgrade , backup and recovery , password management ,WatchCat ,Scheduled restart | |
| Diagnostic tools | • ping ,Traceroute ,NSLOOKUP | |
| WLAN specifications | ||
| Wireless Standard | • IEEE 802.11 b/g/n@2.4G | |
| Wireless Rate | • 300Mbps ,2T2R | |
| Output Power | • 18dBm | |
| Receiving sensitivity | • -92d Bm | |
| Authentication Type | •WPA- PSK,WPA2- PSK,WPA- PSK/WPA2-PSK | |
| Other specifications | ||
| Dimensions (H x W x D) | 4.5CM*20CM*14.5CM(without external antenna and pads) | |
| Weight | About 300g | |
| Working temperature | -25°C ~ -60°C | |
| Working humidity | 10% RH to 90% RH (non-condensing) | |
| Storage humidity | 10% RH to 90% RH (non-condensing) | |
